IKEDA YKD-9102 Full HD Endoscope Camera System is a powerful 1080p high-definition video endoscopy system built for the demands of diagnostic and surgical applications in otolaryngology (ENT), gynecology, urology, plastic surgery, and more. Combining exceptional image quality with an intuitive user experience, it enables surgeons to focus on their patients while supporting more accurate diagnosis and treatment — a reliable choice for hospitals, surgical centers, and clinics seeking dependable full HD endoscopic visualization.

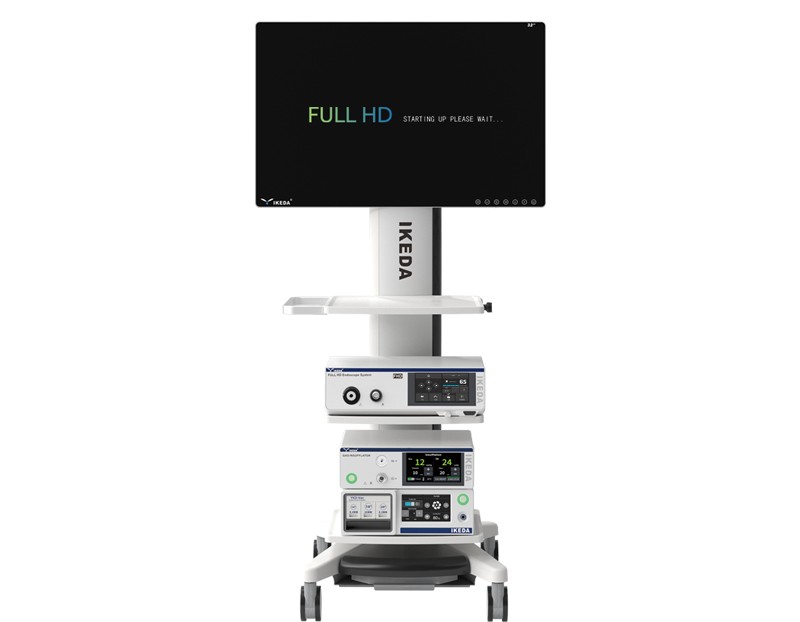

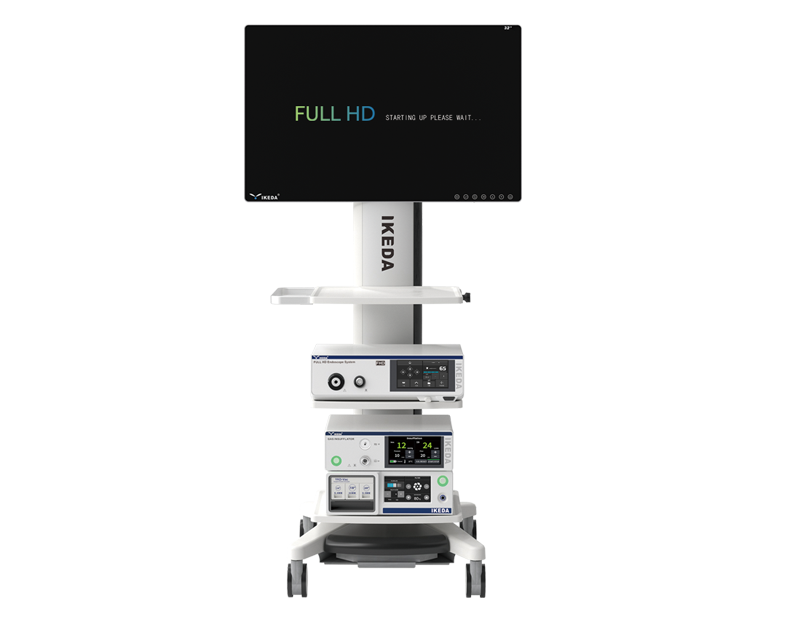

YKD-9102 Full HD Endoscope Camera system
Product Features

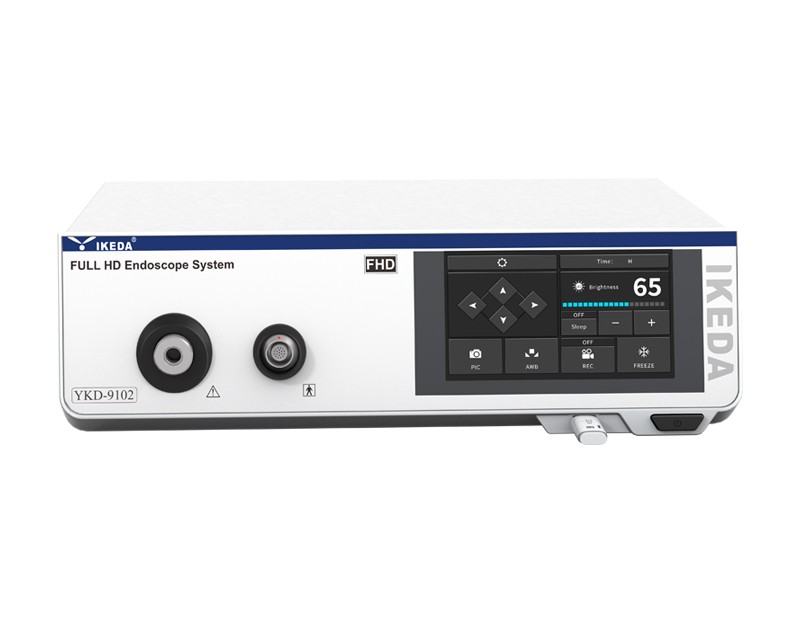

•FULL HD camera control unit
•FHD camera head and LED cold light source integrated
•Built-in USB FULL HD image storage, Integrated photo/video recording system
FHD Camera
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Medical Monitor
• YKD-8032/YKD-8027/YKD-8024/YKD-8022 4 different models available.
• Anti-Glare
• Full-laminated
• CE/ROHS/FCC certified
Technical Parameters
Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Light source | · Built-in LED cold light source |
Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
Language | · Chinese/English/Japanese/Korean/Spanish/German/Russian |
