The IKEDA YKD-9007 1080P Medical Full HD Endoscope Camera is a high-definition imaging device combining advanced camera technology with powerful image processing. It captures clear, detailed 1080P visuals for endoscopic diagnosis and treatment, with fast transmission and stable performance that truly reproduces the surgical field. Widely used in endoscopic surgery, it helps improve surgical quality. Suitable for ENT, urology, gynecology, orthopedics, general surgery, neurosurgery, and plastic surgery.
Product Features

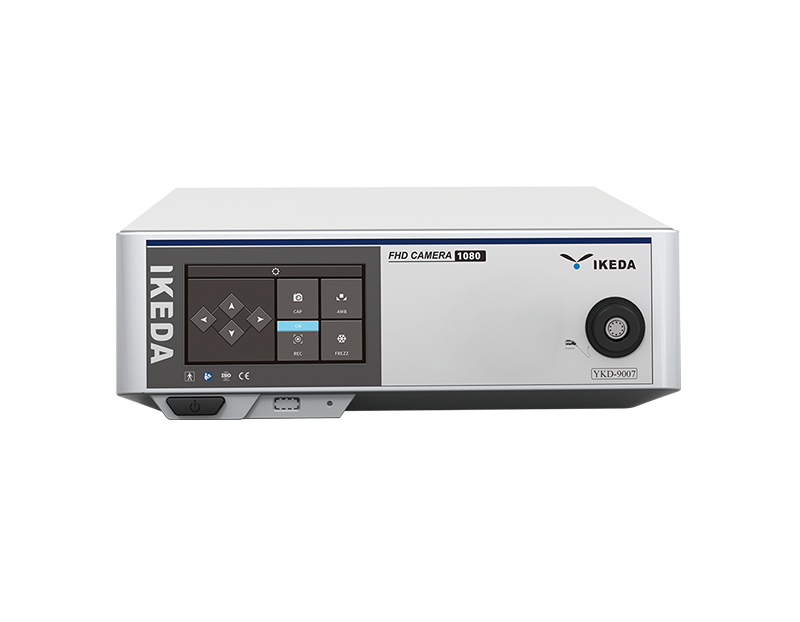

• FULL HD camera control unit
• Built-in USB FULL HD image storage, Integrated photo/video recording system
• Touch button, easy to clean
FHD Camera
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Medical Monitor
• YKD-8032/YKD-8027/YKD-8024/YKD-8022 4 different models available.
• Anti-Glare
• Full-laminated
• CE/ROHS/FCC certified
Technical Parameters
Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen size | · 5 inch |
Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
Language | · Chinese/English/Japanese/Korean/Spanish/Russian |
