YKD-9103T Medical Full HD Endoscope System can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, urology resectoscope, plastic surgery endoscope, laparoscope,breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber ureteroscope, etc.

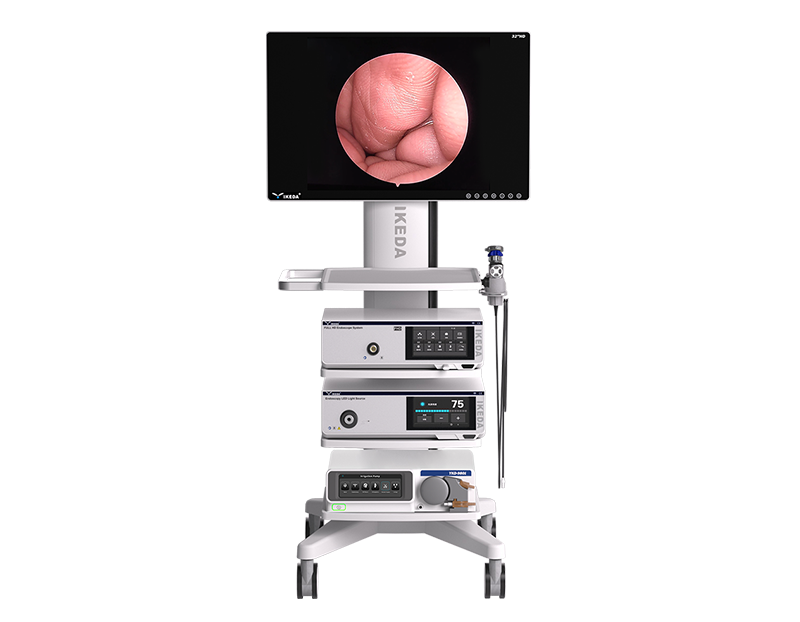

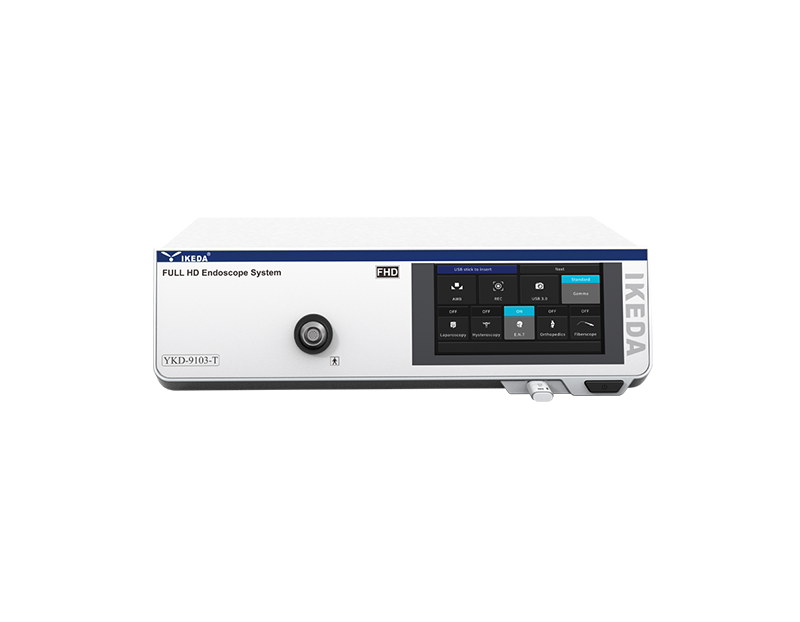

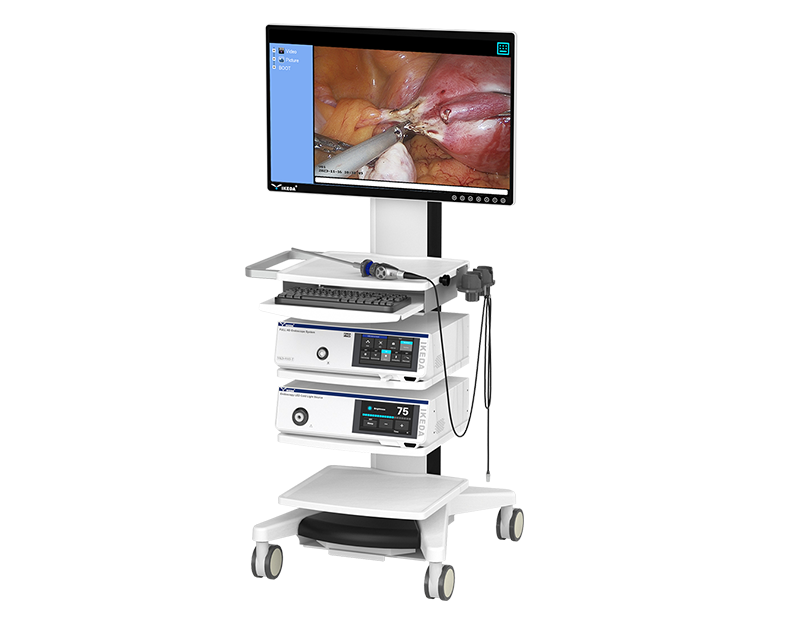

YKD-9103-T Medical Full HD Endoscope System
• FULL HD Image Sensor
• Can be matched with stroboscopic light source for stroboscopic laryngoscopy
• Built-in USB FULL HD image storage, Integrated photo/video recording system
• 11 surgical modes are optional
YKD-9107-T-LED Light Source
• 100w LED cold light source, with 20 adjustable brightness levels.
• Built-in memory function, service life > 50,000 hours.
• Touch button design, easy to clean.
• One-click sleep mode;
FHD Camera
• IPX8 waterproof camera
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
• Universal C-mount threading
• Lightweight and ergonomic design
Medical Monitor
• YKD-8032/YKD-8027/YKD-8024/YKD-8022 4 different models available.
• Anti-Glare
• Full-laminated
• CE/ROHS/FCC certified
Technique Parameters
Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
Screen Size | · 7 inch |
Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
Language | · Chinese/English/Japanese/Korean/Russian/Spanish |
