• FULL HD camera control unit
• Can be matched with stroboscopic light source for stroboscopic laryngoscopy
• Built-in USB FULL HD image storage, Integrated photo/video recording system
• 11 surgical modes are optional
• IPX8 waterproof camera

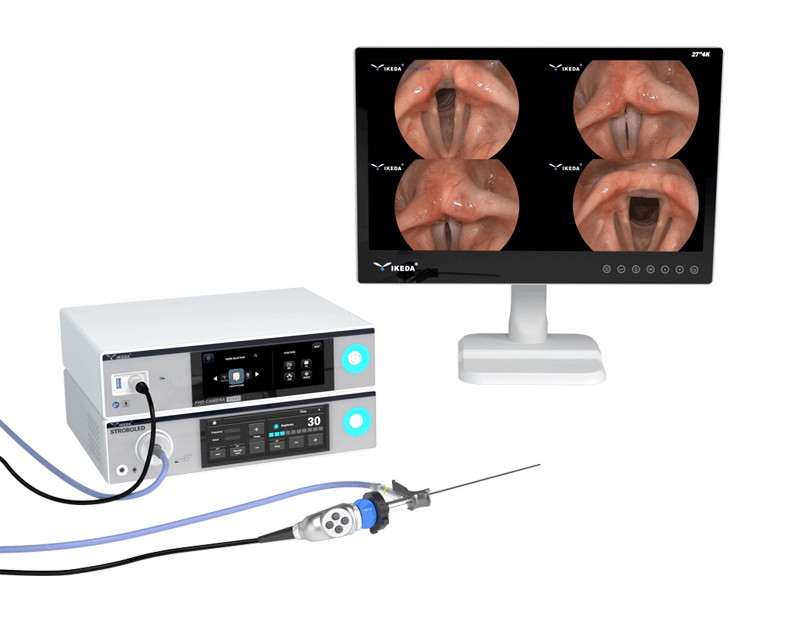

YKD-9029 Stroboscopy Light Source
• Excellent stroboscopy algorithm - No flickering in video, no blackouts
• Great Illumination - Provides bright viewing in both permanent and stroboscopy modes
• Noise-free Design - Minimized side tone distraction during examination
• Microphone Options
FHD Camera
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/
Zoom in/Zoom Out/White Balance
Medical Monitor
• YKD-8032/YKD-8027/YKD-8024/YKD-8022 4 different models available.
• Anti-Glare
• Full-laminated
• CE/ROHS/FCC certified
Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
Screen Size | · 6.8 inch |
Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons/Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
Language | · Chinese/English/Japanese/Korean/Russian/Spanish |
