The IKEDA YKD-9800 Irrigation Pump is designed specifically for endoscopic surgery. By allowing precise adjustment of pressure and flow parameters, the device enables effective tissue irrigation and fluid suction during endoscopic procedures.
To saving costs and space, IKEDA has developed a multifunctional pump. The Pump combines six applications in one unit. Simple handling as well the safety feature for every application complete the design of the pump.
The six fields of application (Laparoscopy, Hysteroscopy, Urology, Arthroscopy, ENT & Neurology, Spinal)

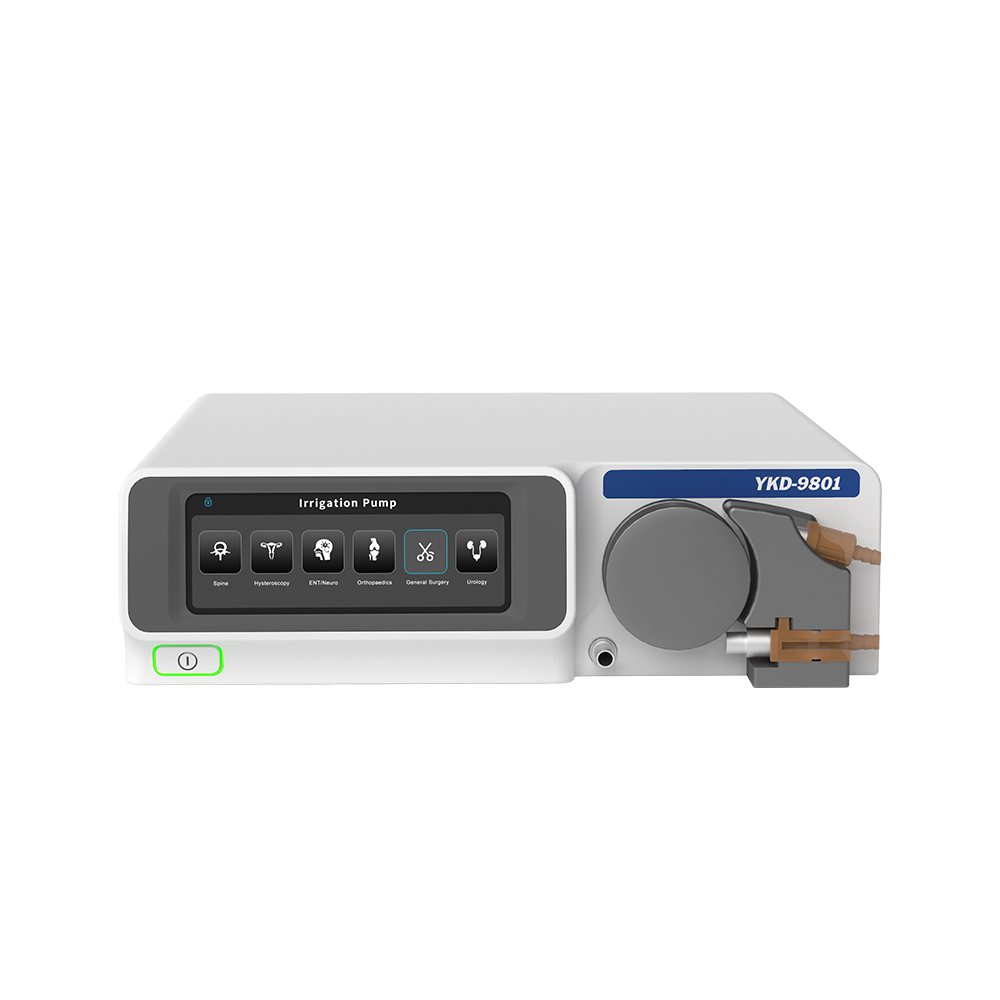

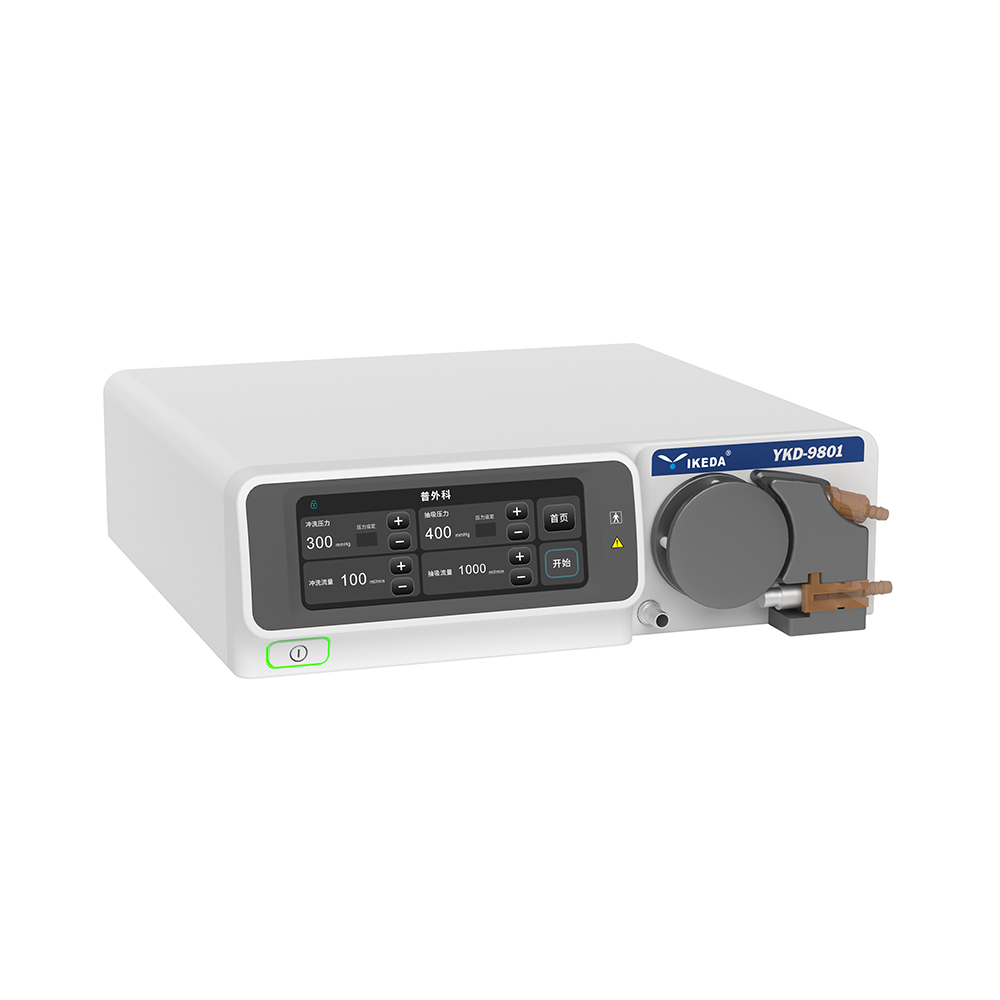

YKD-9800 Endoscopic Irrigation Pump
Wide applicability, suitable for all clinical departments
6.8-inch smart touchscreen with real-time monitoring
Pre-programmed with 6 usage scenarios for one-touch switching
High-flow setting with a maximum capacity of 2000ml
Equipped with high-precision flow detection and a dual-channel negative pressure pump
Technical Parameters
| Model | YKD-9800 | YKD-9801 |
| Function | Flushing/Suction | Flushing |
| Safety Classification | Class I, Type BF | Class I, Type BF |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
| Rated Power | ≤200VA | ≤200VA |
| Display | 6.8-inch touchscreen | 6.8-inch touchscreen |
| Noise Level | ≤70 dB(A) | ≤70 dB(A) |
Preset Pressure Limit
Spinal: 40~140mmHg, adjustment step: 10mmHg
Hysteroscopy & Urology: 15~140mmHg, adjustment step: 5mmHg
ENT & Neurology: 20~150mmHg, adjustment step: 10mmHg
Arthroscopy: 30~150mmHg, adjustment step: 10mmHg
General Surgery: 10~700mmHg, adjustment step: 200mmHg
Preset Perfusion Flow Rate
