The IKEDA AKX-9660 arthroscopic shaver system is a perfectly balanced, light weight shaver system for knee, shoulder and small joints surgery. The efficient, light and ergonomic hand piece, enhanced by a wide range of rotational speed, is designed to work with multi use shaver blades.

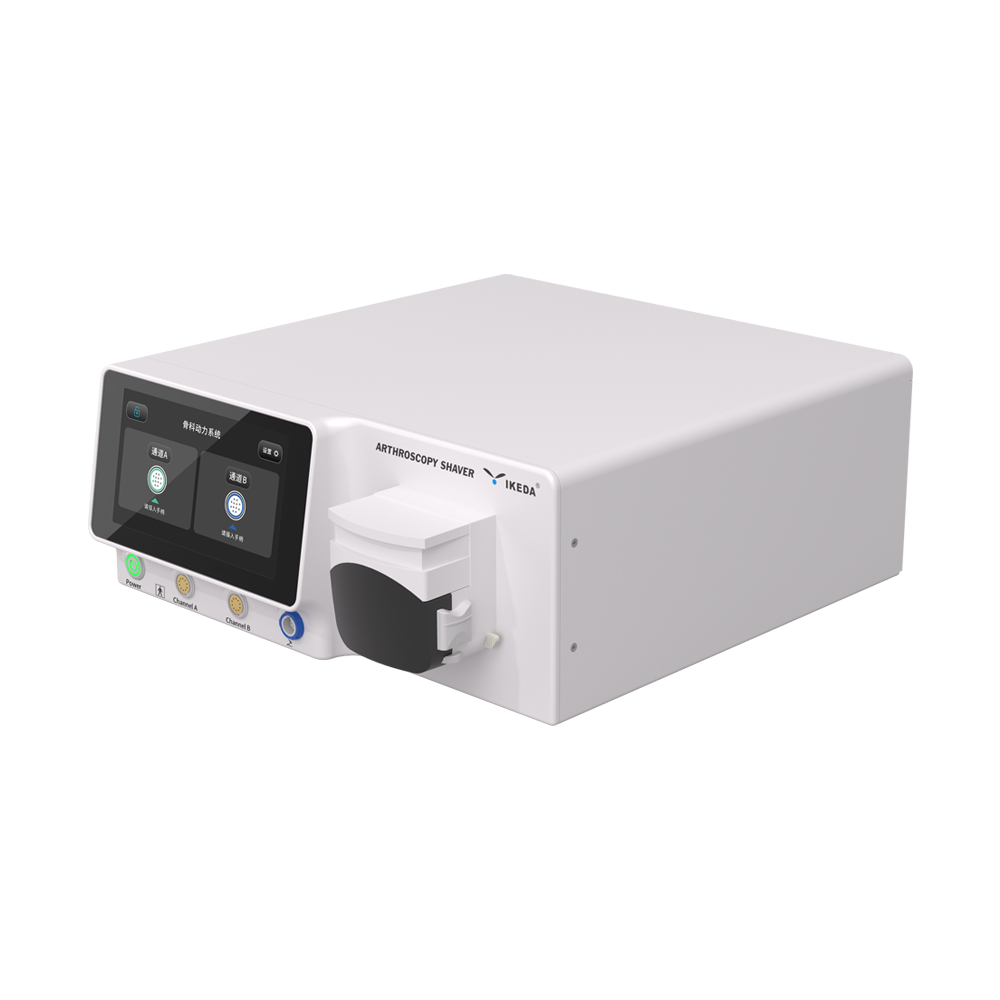

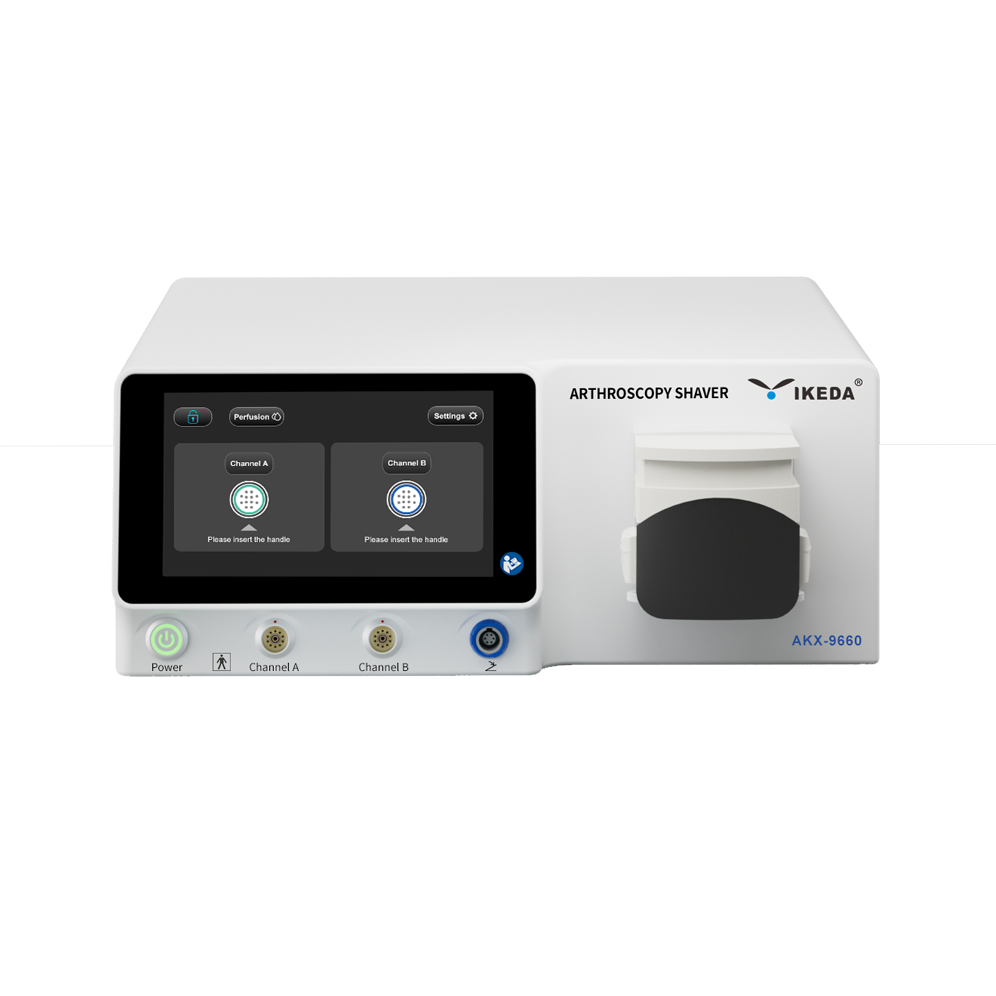

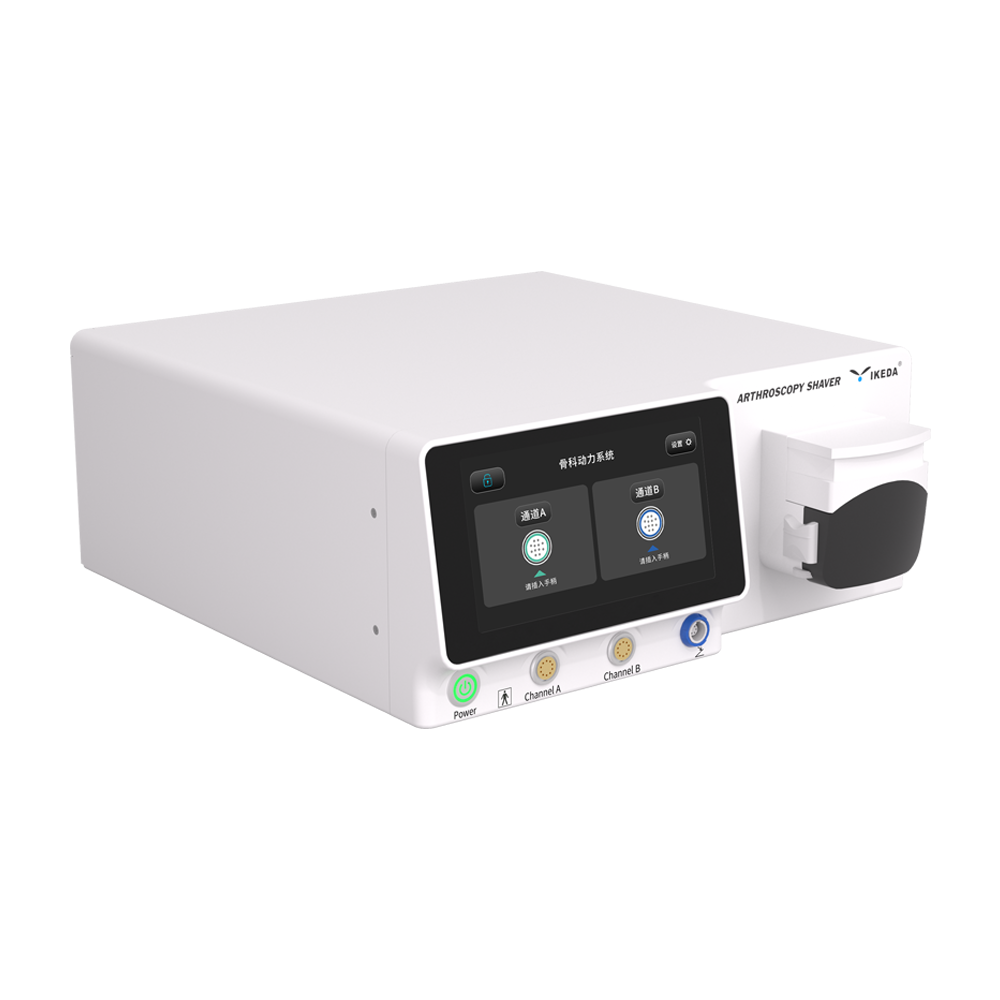

AKX-9660 Arthroscopic Shaver System
7-inch intelligent LCD touchscreen for simple and intuitive operation
Four operating modes: forward, reverse, reciprocating, and jog control.
Built-in pump with adjustable flow range.
Dual-handpiece design allows two handpieces to work simultaneously with different speeds and modes.

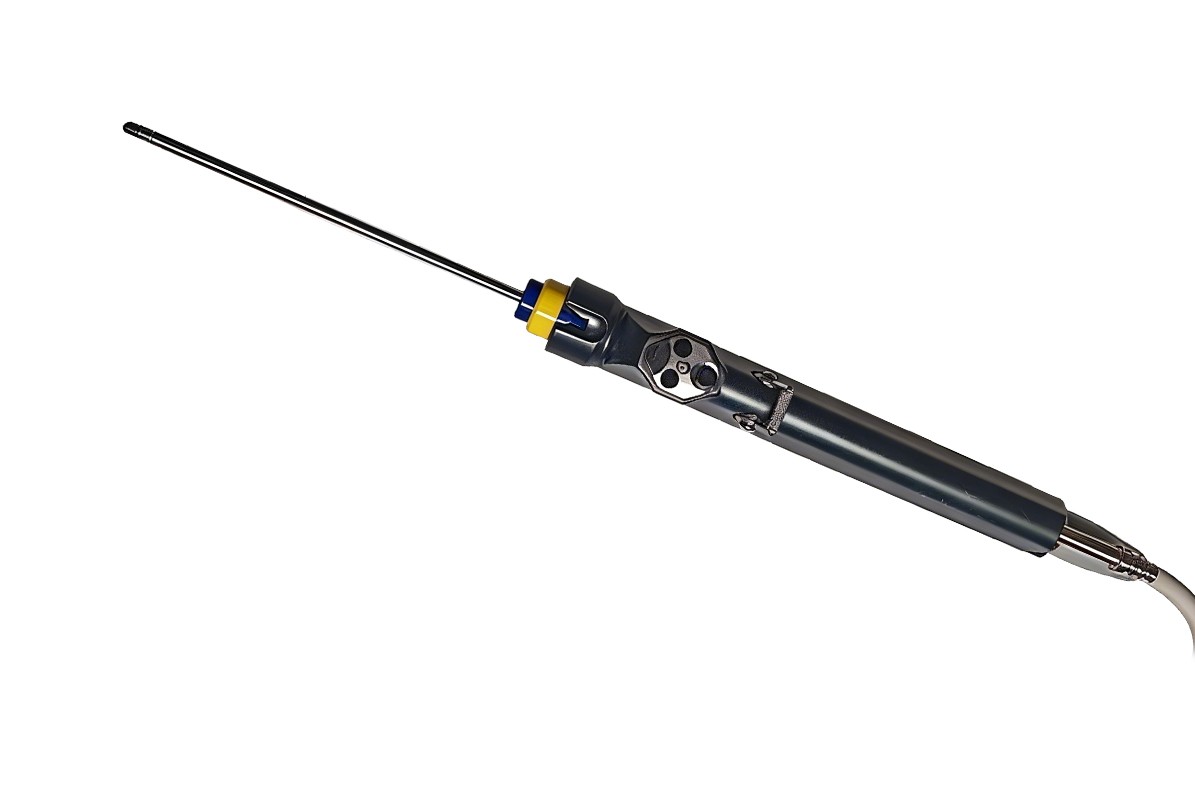

Universal handpiece compatible with full range of shaver blades for sports medicine.
Shaver handpiece is autoclavable.
Speed memory and automatic fault alarm functions.
| Power supply type | AC 100-240V 50/60Hz |
| Operating mode | Continuous operation |
| Input power | 300VA |
| Fuse | T2AL 250V |
| Preset no-load speed | Planer mode: 500 r/min～5000 r/min |
| Preset no-load reciprocating frequency | Grinder head mode: 500 r/min～8000 r/min |
| External dimmension | 0.3～1s |
| Size | 36(L)x42(W)x14.5(H)cm |
| Ambient temperature | Transport/Storage -20°C to 60°C Operating temperature: 5°C to 35°C |
| Handle length | 190mm |
| Wire length | 2960mm |
| Weight | 700g |
| Maximum speed | 8000 rpm |
| Steriization method | High-temperature high-pressure sterilization,≤200times |
| Ambient temperature | During operation:+10°C to +40°C During storage and transport:-20°C to +45°C |
| Max. relative humidity | During operation:100% During storage and transport: 90% |
| Class of protection | Class I BF Type |
| Buttons | forward, reverse, reciprocating |
| Compatible brand blades | CONMED/Smith & Nephew/Stryker |
