The IKEDA surgical smoke evacuator provides ideal smoke management for operating rooms, physicians' offices, and outpatient surgery centers.The product features next-generation ULPA filtration technology, removing 99.999% of smoke pollutants. It offers user-friendly operation for both open and laparoscopic procedures.

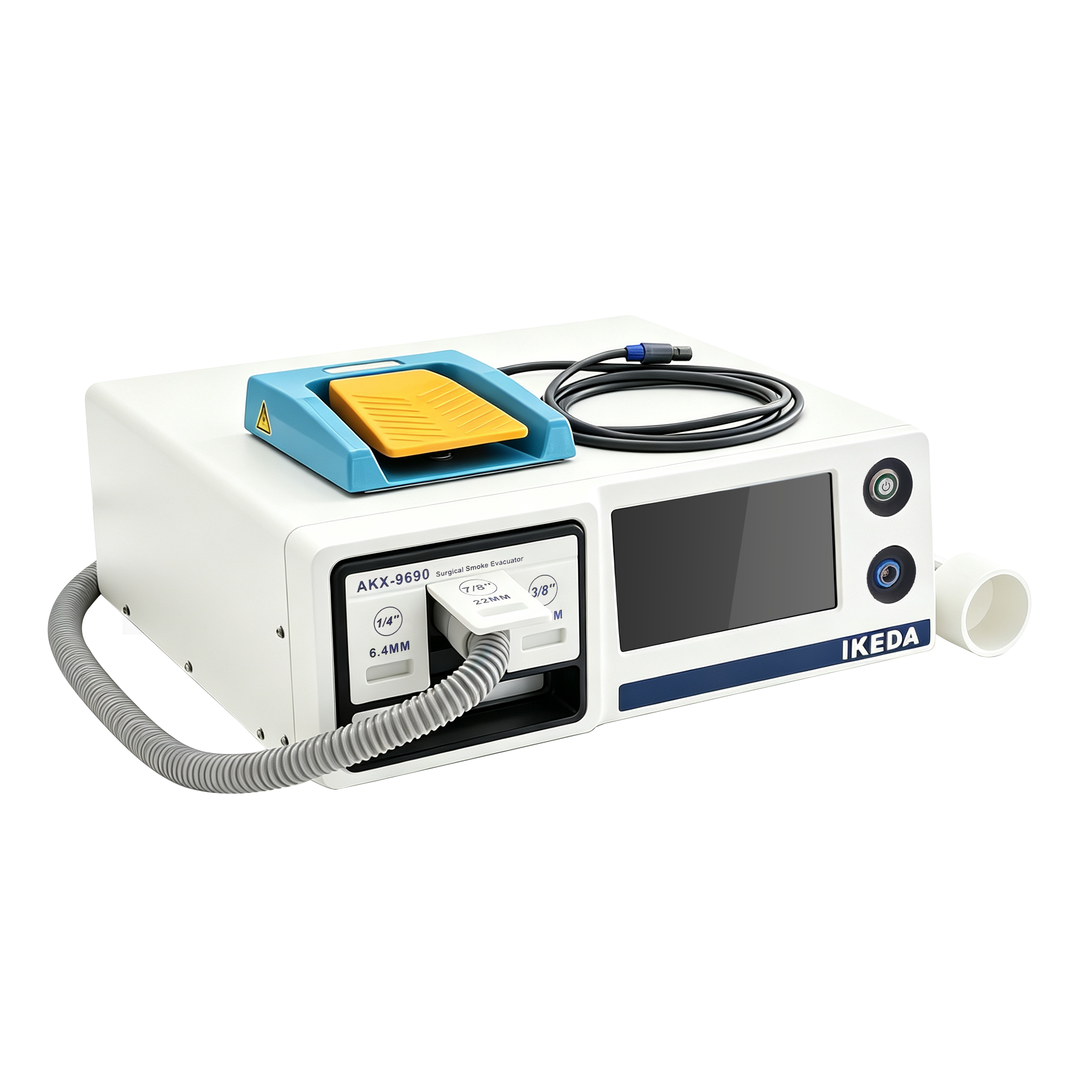

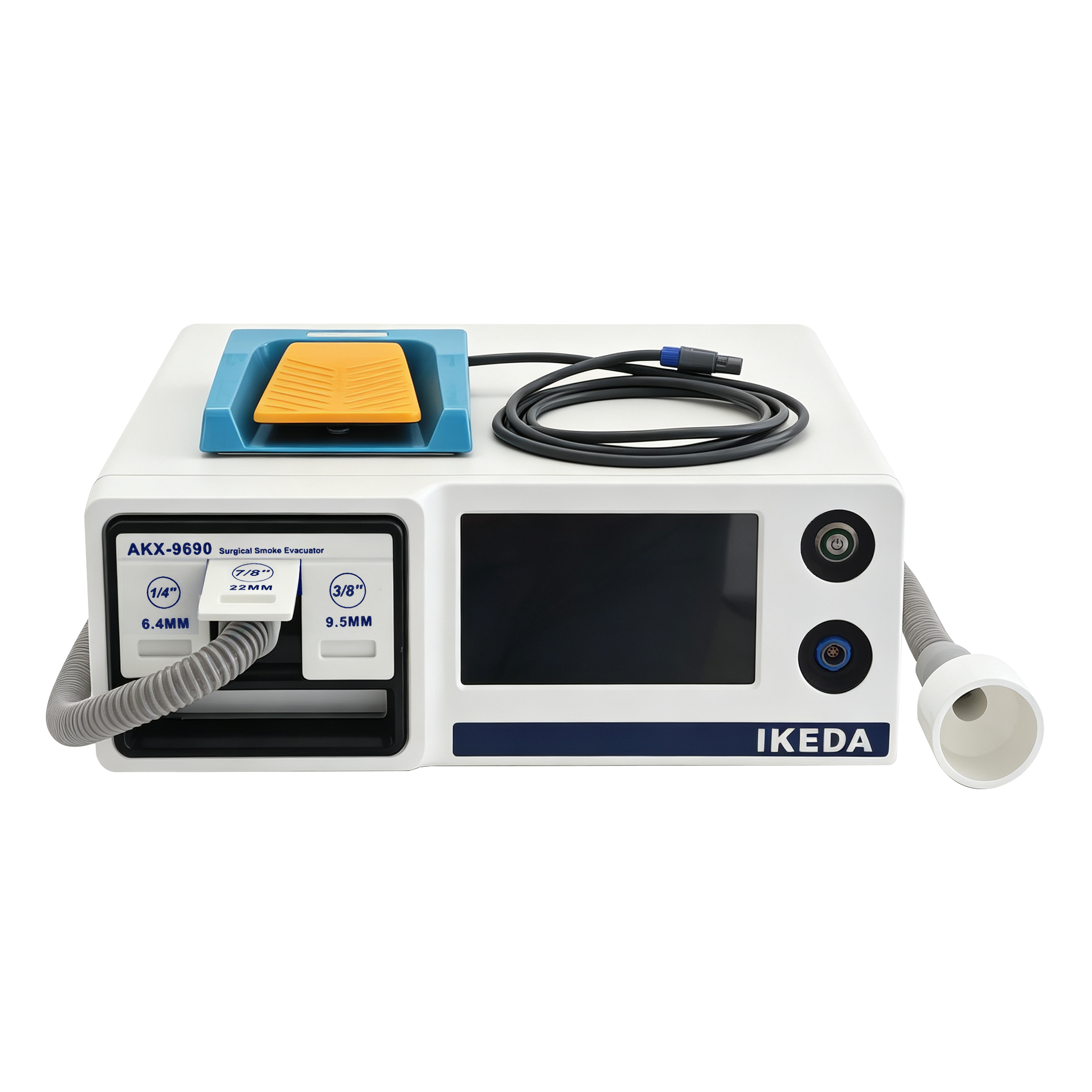

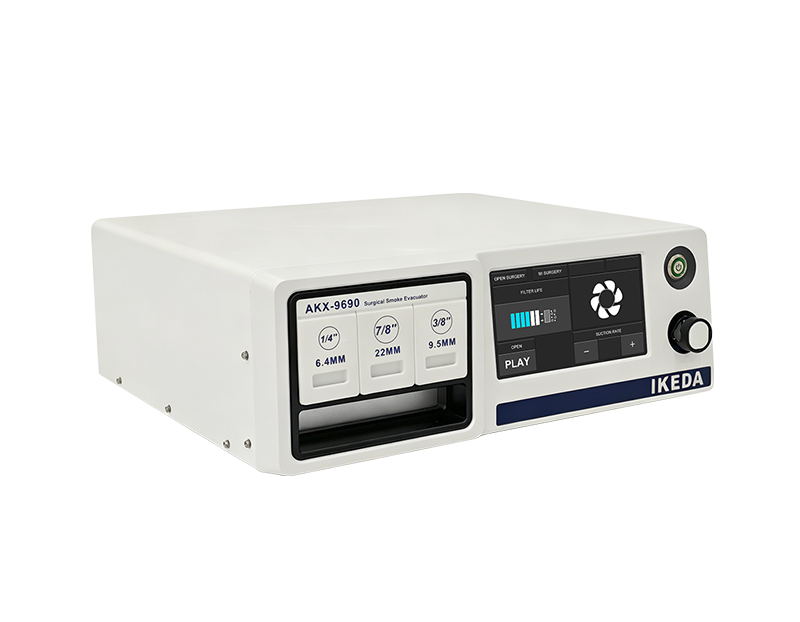

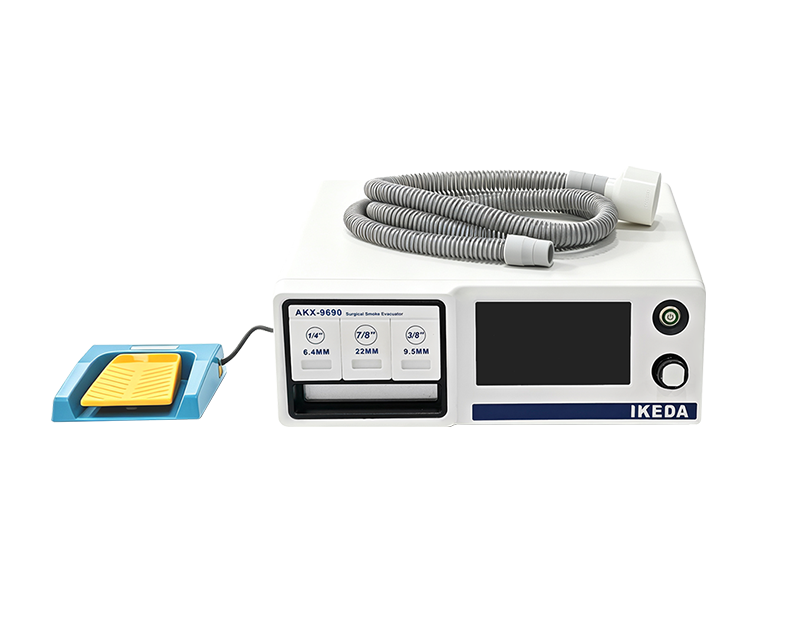

Surgical Smoke Evacuation System

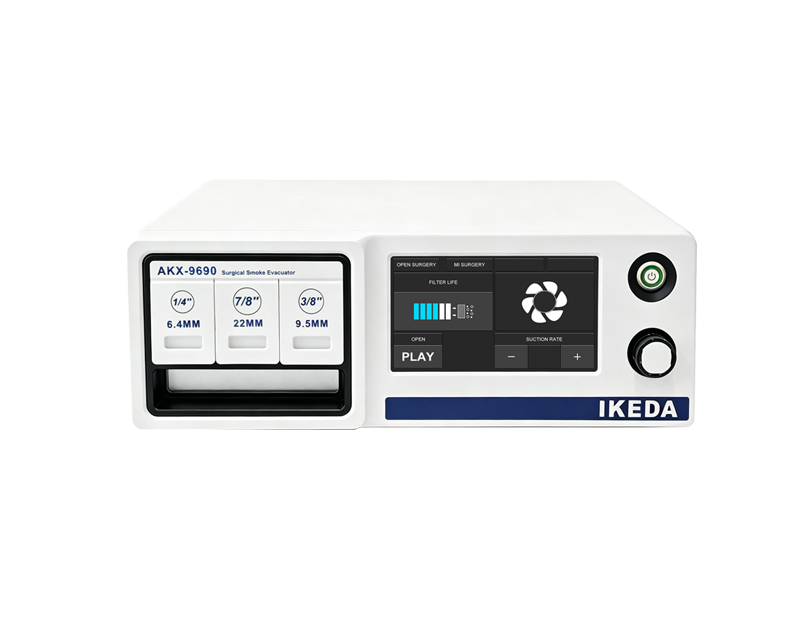

7-inch smart touchscreen with simple and intuitive operation
Supports 1-10 adjustable smoke extraction levels
3-port fiter design compatible with various pipe sizes
Smart monitoring of filter cartridge lifespan (up to 35 hours)

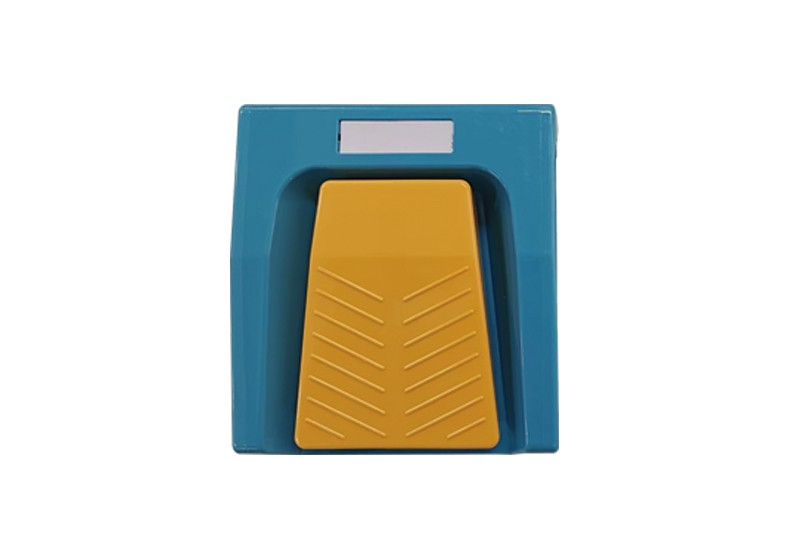

Multiple activation modes: manual, interlock, and foot pedal
Technical Specifications
| Smoke Extraction LevelNoise Level | 43db~73db |
| Maximum Airflow | 1300 m²/h (varies with different interfaces) |
| High Static Pressure | 23 kPa |
| Purification Efficiency | 99.999% (for particles ≥0.12μm) |
| Power Supply Type | 220V~ 50Hz |
| Circuit Breaker | 3A 250V |
| Maximum Power Input | ≤300 VA |
| Display Panel | 7-inch LCD |
| Dimensions | 420x145x398mm |
| Smoke Extraction Level | 10-stage adjustment |
