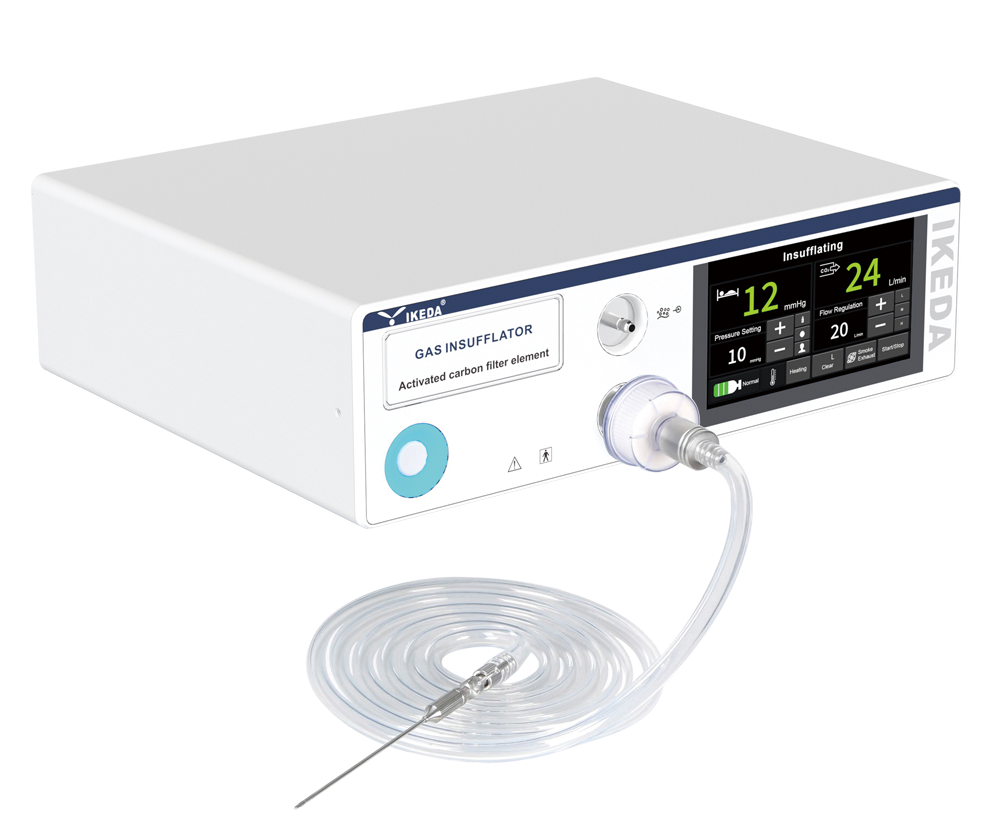

The 40L CO2 Insufflator for Endoscopy by IKEDA is designed to provide efficient and controlled CO2 insufflation during endoscopic procedures. This high-performance insufflator ensures precise gas flow and pressure control, contributing to the safety and effectiveness of minimally invasive surgeries.
CO2 Insufflator for endoscopy
7-inch smart LCD touch screen
Max flow rate - 40L
Overpressure alarm function
Smoke extraction function
External heating function
Support external device control
Technical Parameters
| Model | YKD-9700 |
| Flow Rate Setting | 10~40L/min |
| Pressure range | 5mmHg~25mmHg |
| Overvoltage alarm | When the intra-abdominal pressure exceeds the preset pressure by 1mmHg and lasts for more than 2s, an overpressure alarm will be issued |
| Overpressure release | The overvoltage release time is 30s |
| Underpressure supplement | The undervoltage replenishment time is 30s |
| Gas filtration | The filtration rate of particles of 0.5um and above in the gas is not less than 90% |
| Dimensions of the main unit | 38cm(L)x31.3cm(W)x12cm(H) |
| The length of the high-pressure connection pipe in the external air supply connection assembly | (2900±50)mm |
| The length of the inflatable tube in the inflatable tube assembly | (2500±20)mm |
