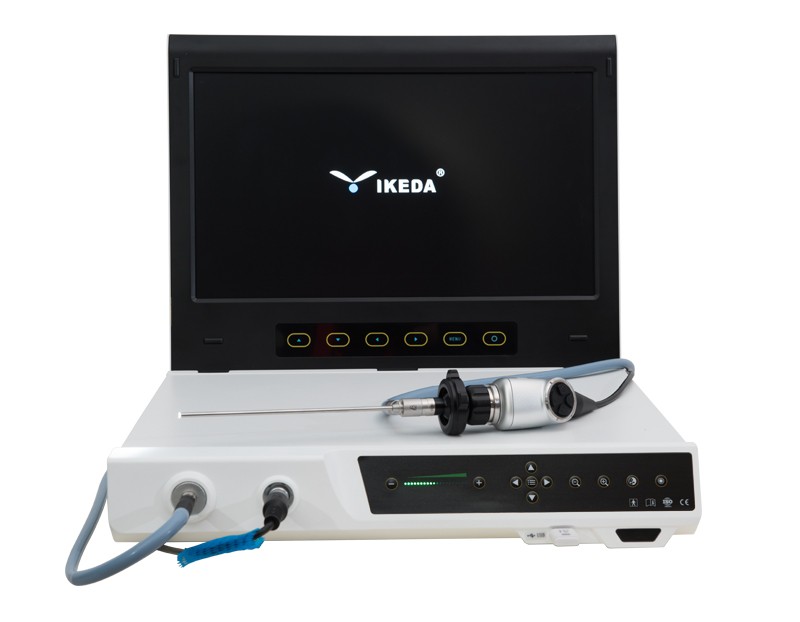

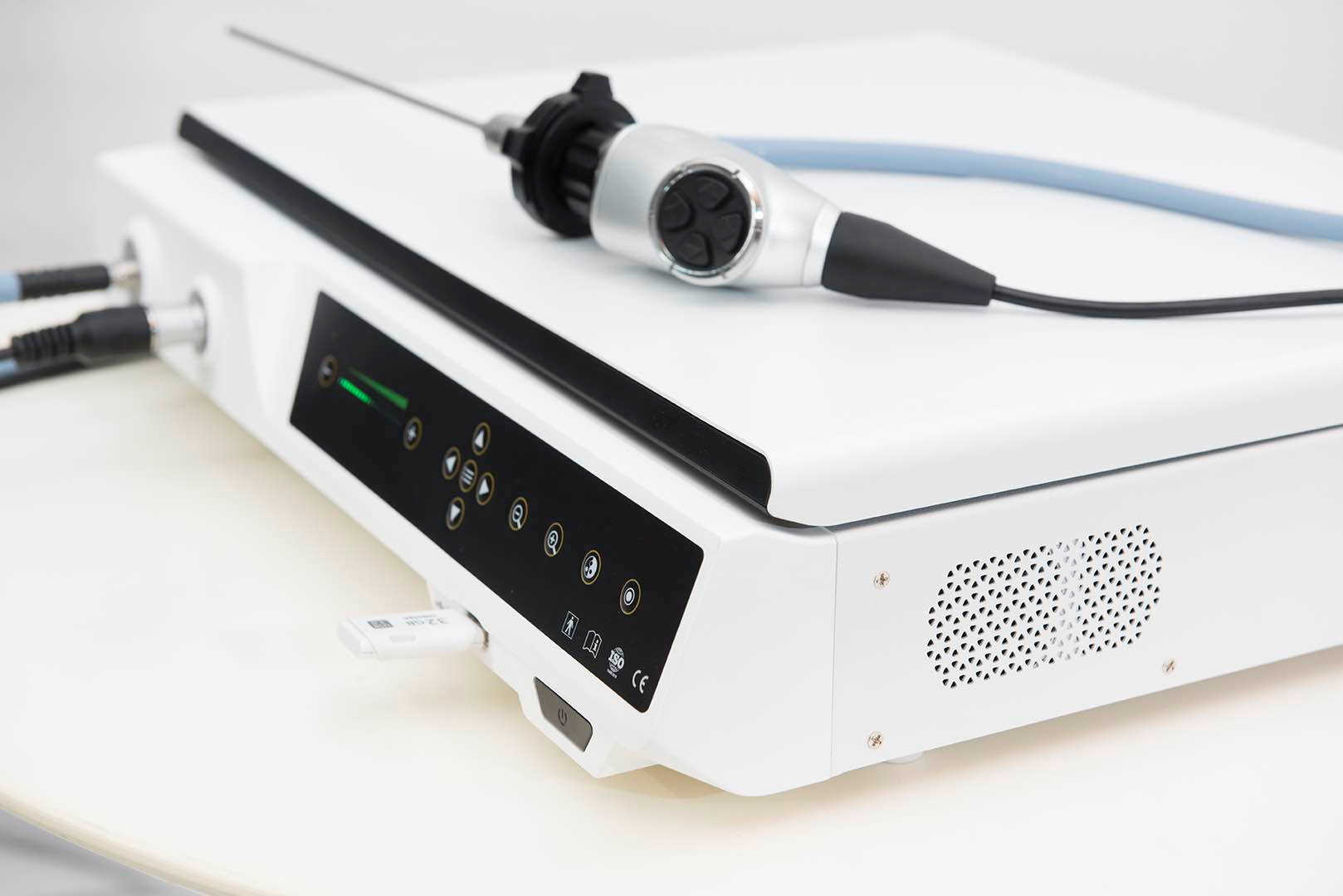

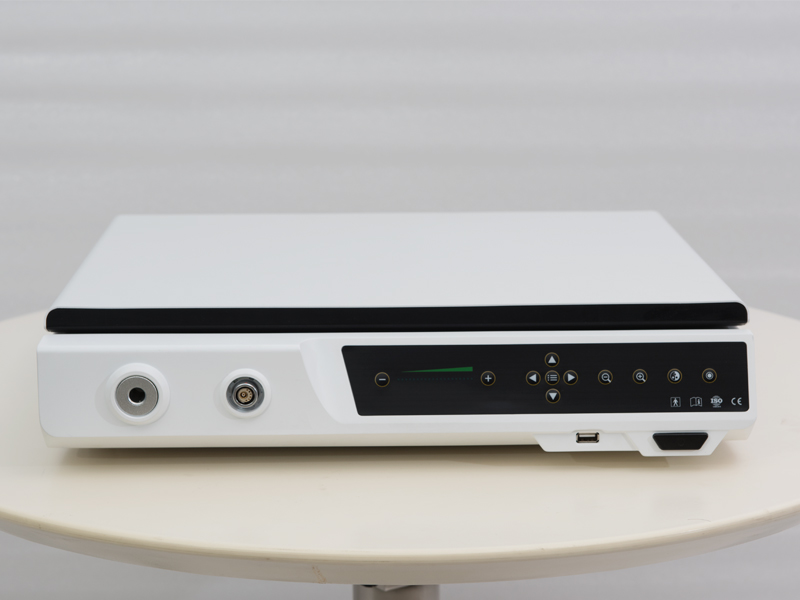

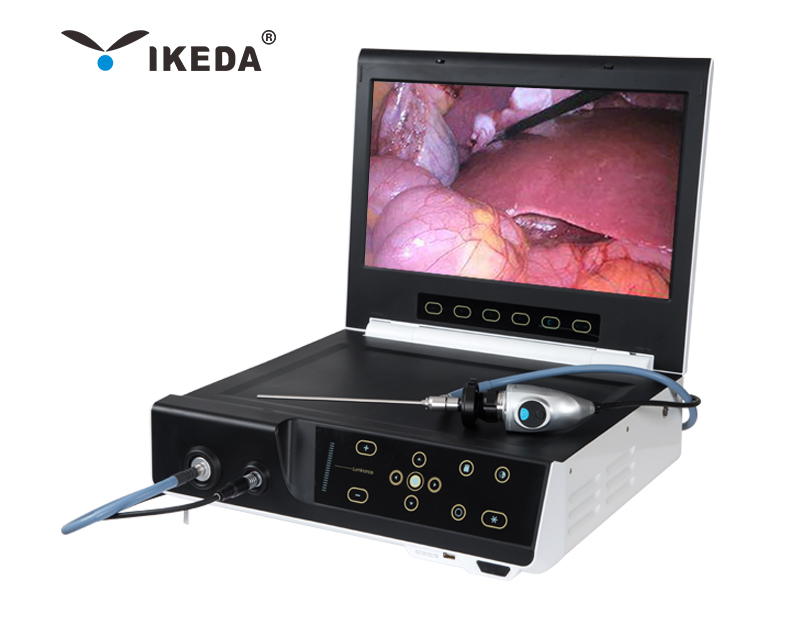

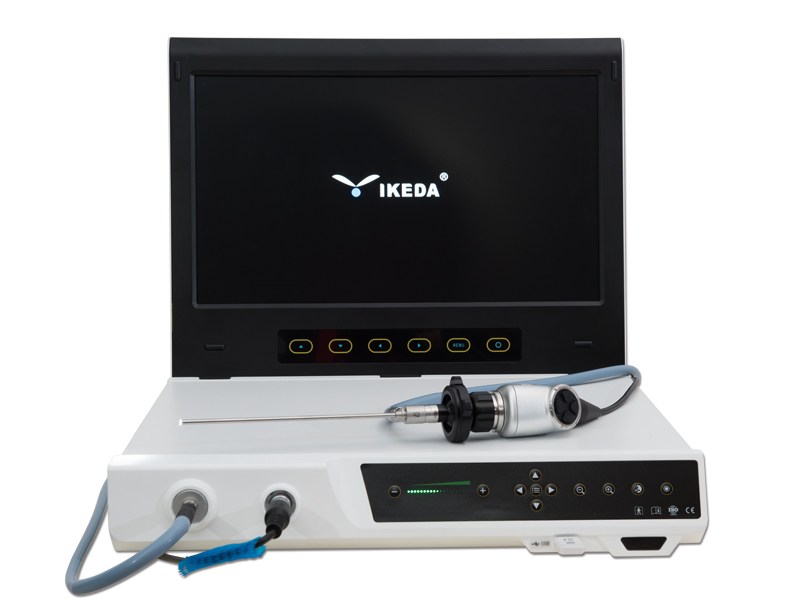

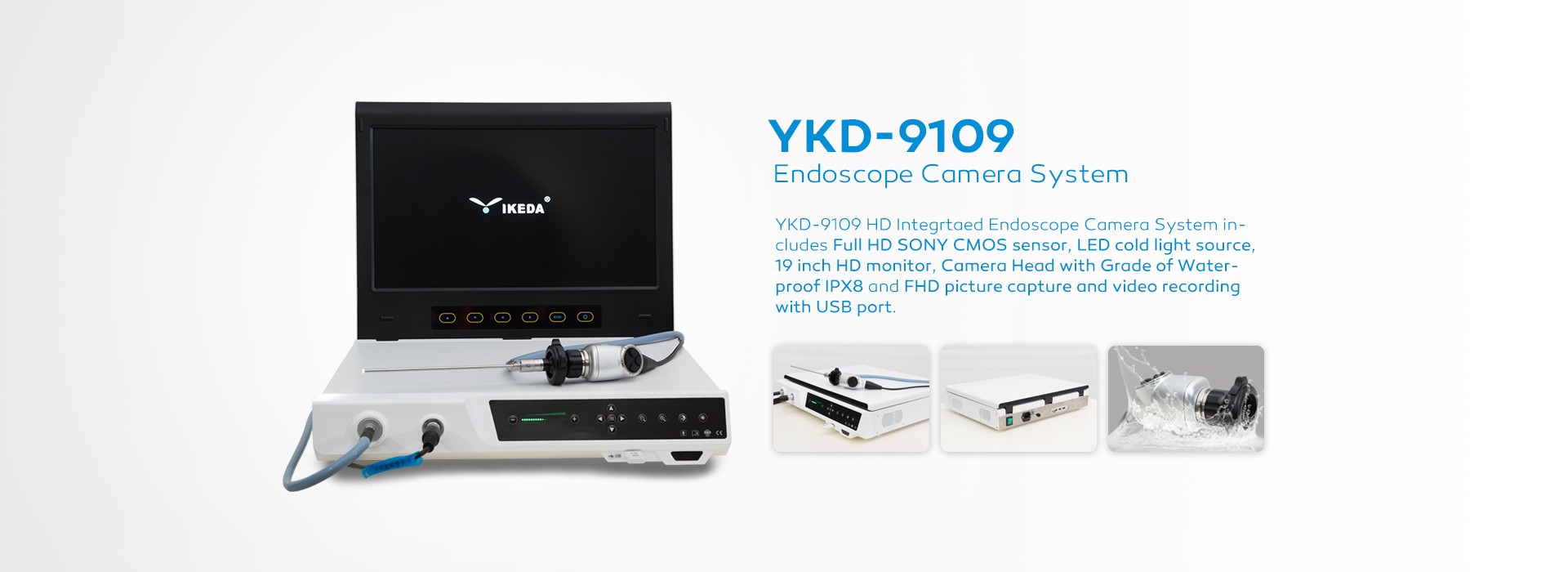

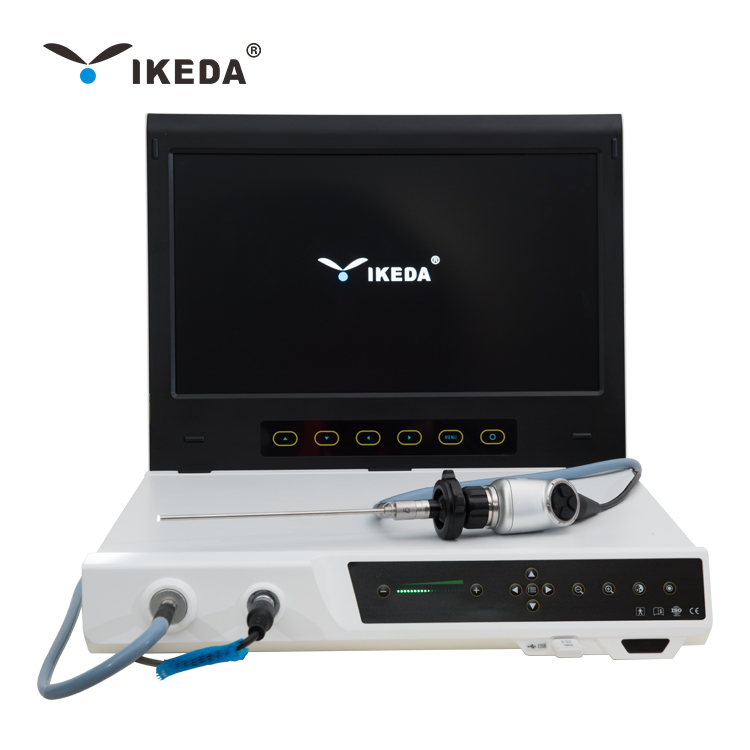

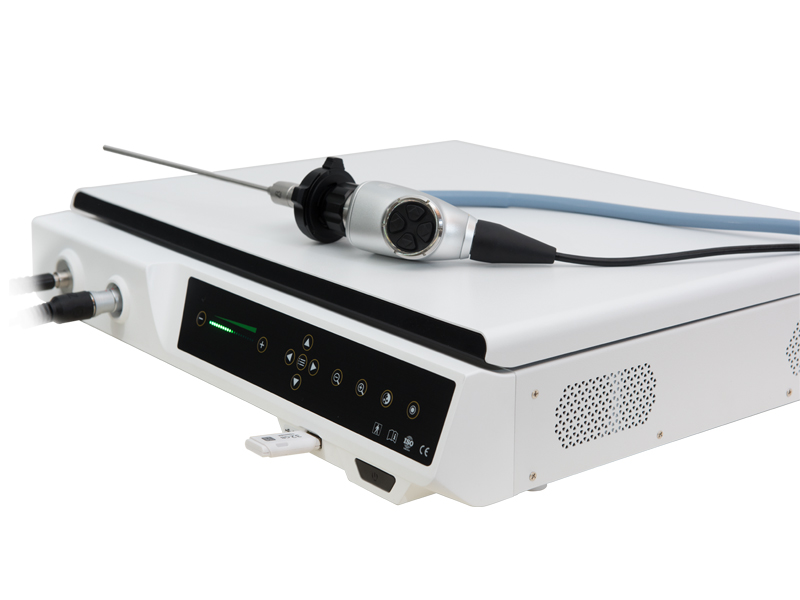

  • YKD-9109 19 inch Full HD portable endoscope camera
  • YKD-9109 19 inch Full HD portable endoscope camera
  • YKD-9109 19 inch Full HD portable endoscope camera
  • YKD-9109 19 inch Full HD portable endoscope camera
  • YKD-9109 19 inch Full HD portable endoscope camera

    1.All-in-one Integrated HD Endoscopy Camera System.

    2.Portable Endoscope Camera could be widely used for all departments in Clinics and Hospitals: ENT, Orthopedics, Urology, Gynecology, Neurosurgery, Plastic Surgery and so on.

    3.It is compatible with all types of rigid and flexible fiber endoscopes, such as Sinuscope, Otoscope, Laryngoscope, Arthroscope, Spine Endoscope, Cystoscope, Ureteroscope, Restoscope, Hysteroscope, Laparoscope and so on.

    4.Our Endoscopic Camera System passed CE and ISO 13485 certification.


    Share:
    Product Details

    Product Features

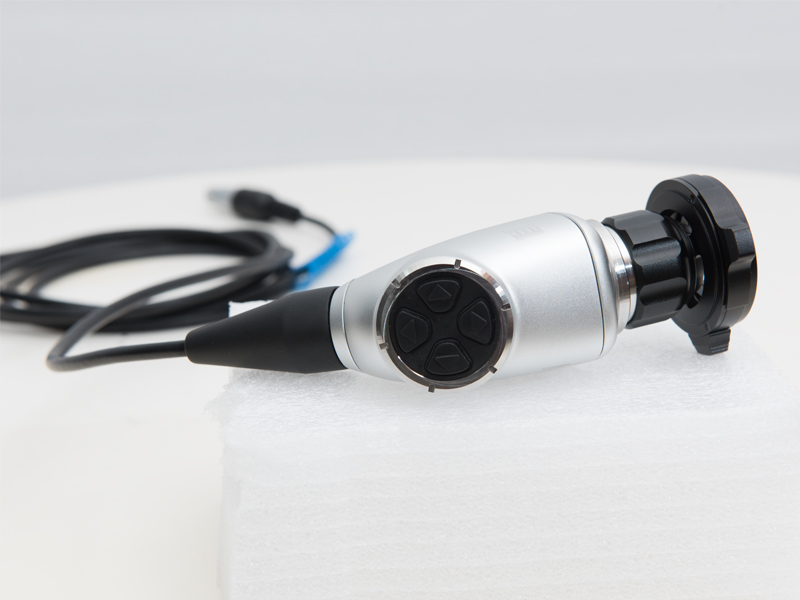

    1. SONY CMOS 1080P HD camera

    2. Built-in 80W LED cold light source

    3. 19 inch HD monitor

    4. Could connect to additional 21''/22''/24'' HD monitor

    5. Record HD video by connecting HD recorder

    6. USB port to playback the recorded image and video

    7. Workstation can be connected for report printing function.

    YKD-9109 19 inch Full HD portable endoscope cameraimage.png


    Primary Advantages

    1. Direct Endoscope Camera Manufacturer/Supplier

    2. Competitive Price / High cost and Performance

    3. Promote Shipping.

    4. Excellent After-Sales-Service.



    Technical Parameters

    1Camera1/2.8” SONY CMOS
    2Total Pixels2,100,000 pixels
    3Horizon Resolution1080lines4Frame Rat(1920x1080)60p
    5SNR≥50dB6Video OutputDVI,CVBS
    7Scanning SystemProgressive Scanning8Image Size(Horizontal*Vertical)1920*1080p
    9Camera ControlFreeze, White Balance10Monitor Size 19inch
    11Monitor Ratio16:912CouplerF18,F20,F22,F25,F28,F30
    13LED Consumption80W14Light adjustmentGrade 20 strong
    15Light Illumination≥3,000,000Lux16LED light lifetime≥50000hours




    Related products

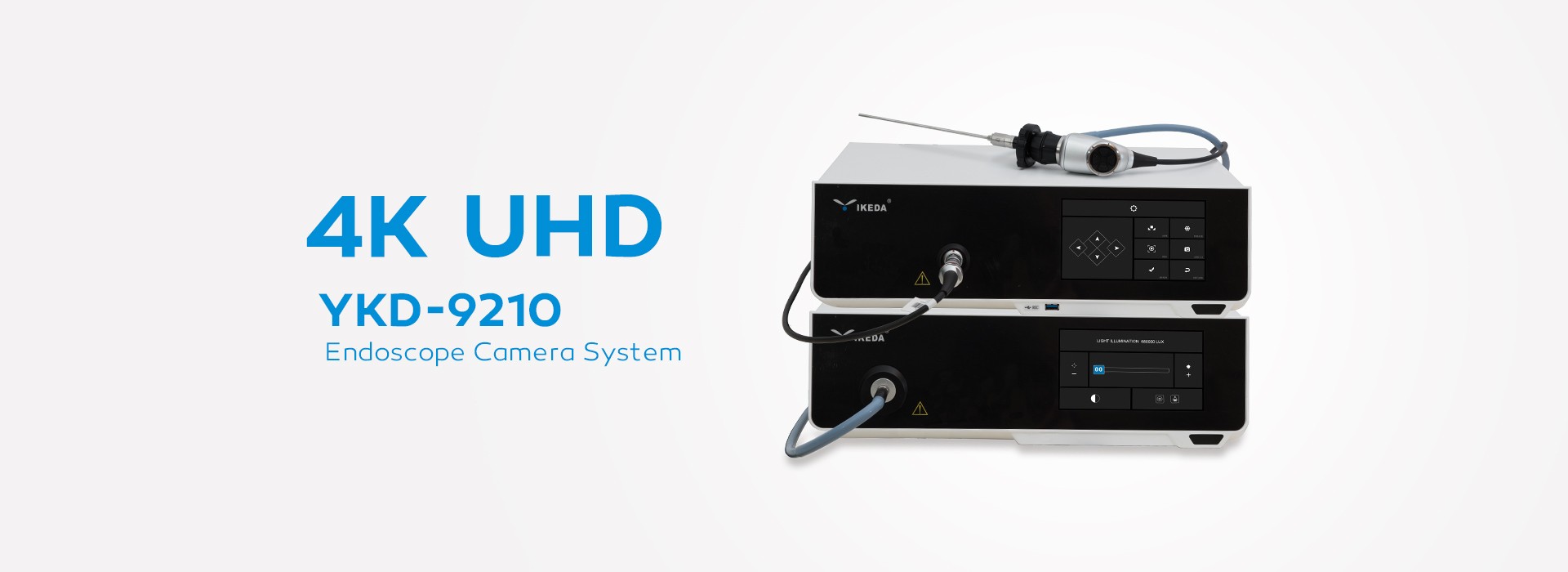

    4K Endoscope Camera System 4K Endoscope Camera System

    ​The 4K endoscope camera system has 4 times the resolution of Full HD. Th...

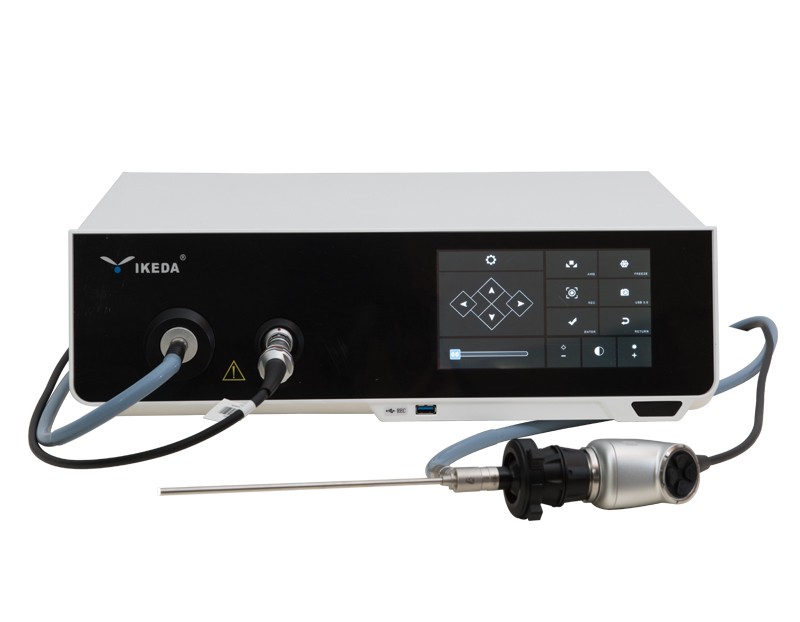

    YKD-9100 USB Storage Medical Endoscopy System YKD-9100 USB Storage Medical En...
