1. 1/2.8"SONY CMOS HD Camera
2. 22 inch HD screen
3. Built-in 80W LED cold light source
4. HDMI、DVI and CVBS video output
5. Record and output 1080P HD image and video by HD video recording box
6. Direct manufacturer for more than 10 years
7. Quality assured by passing CE and ISO13485 inspection
8. Prompt delivery within 10 days
9. OEM&ODM Service available
10. Excellent after-sales service

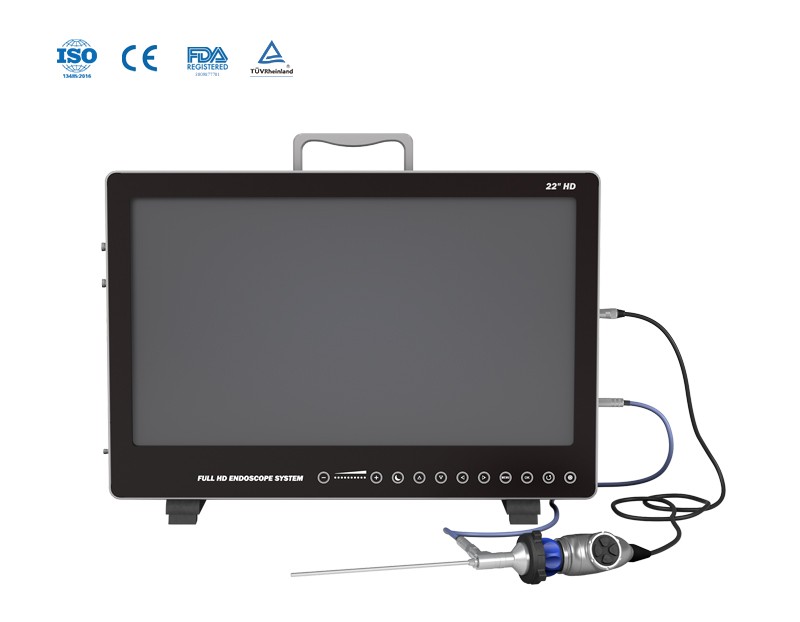

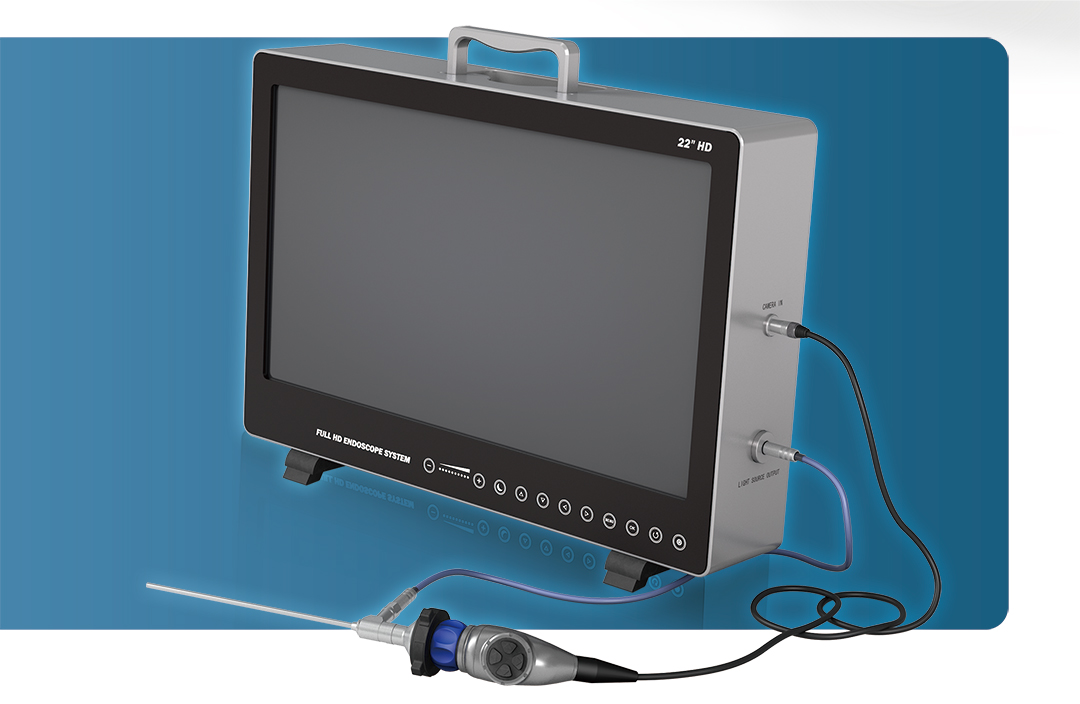

YKD-9122 Full HD Endoscope Camera
Product Features
Apply in FULL field, such as Laparoscopy, Urology, Rectoscopy,ENT and so on
1) Suggest to be used for all rigid scopes and flexible scopes, do doagnosis and surgeries
2) Combining SONY CMOS HD camera and 80W LED light source as a whole set.
3) With 22inch HD monitor
4) The integrated design of LED cold light source and camera saves space and is convenient to carry;
5) Record video function and capture picture function
Technical Parameters
| Product Model | YKD-9122 |
| Camera | 1/2.8 inch SONY CMOS HD Camera |
| Pixels | 2,100,000 Pixels |
| Image Size(Horizontal*Vertical) | 1920*1080 |
| Scanning System | Progressive Scanning |
| Horizon resolution | 1080 TVL,Tolerance 20% |
| Frame rate | (1920*1080)60p |
| SRN | 50dB,Tolerance 20% |
| Video Output | By"DVI,HDMI,CVBS" video output |
| Screen | 22 inch HD screen |
| Function | USB storage |
| Language | Chinese/English/Japanese/Korean/Spanish/German/Russian |
| AC Input | AC100-240V 50/60HZ |
| Dimension(mm) | 528(L)x105(W)x370(H) |
| Weight | 9.85KG |
