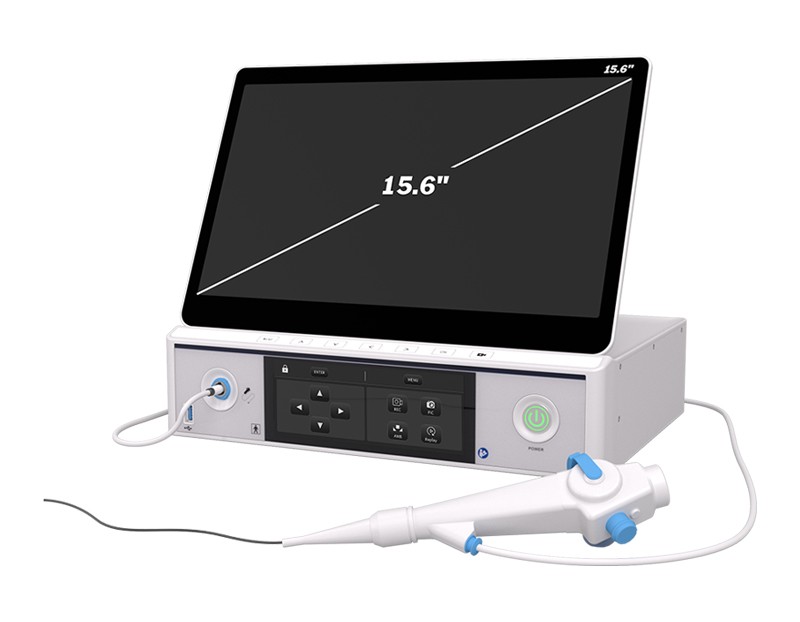

The AKX-9670 Veterinary Endoscopy System is an affordable and efficient scope that integrates a monitor, LED light source, and camera control unit, and can be used for diagnostic and therapeutic procedures such as Single-Use flexible bronchoscopy, Single-Use flexible cystoscopy, and Single-Use flexible ureteroscopy.
Veterinary Endoscope Camera
• Portable and compact all-in-one system
• Integrated design with a built-in 15.6-inch full HD display；
• Built-in 6.8-inch smart LCD touchscreen,
• easy and convenient to operate.
• Dual-operation Control System(Touch Screen+Mechanical Bottons)
• Built-in USB image storage
Single-use endoscopes
Tailored for veterinary use, these pre-sterilized disposable electronic endoscopes effectively avoid cross-contamination. The slim body fits various pets, delivering sharp HD images for accurate examination. Supporting combined diagnosis and treatment, they require no disinfection or upkeep, helping clinics lower costs and deliver safer, more efficient services with less stress for animals.
| Model | Insertion Tube | Distal End | Channel Size | Resolution | Working Length (cm) | Bending | Field of View | Depth of Field |
| C2 | 2.5mm | 2.8mm | 1.2mm | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| C3 | 3.1mm | 3.2mm | 1.2mm | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| C4 | 4.5mm | 4.7mm | 2.2mm | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| C5 | 5.3mm | 5.4mm | 2.8mm | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| C6 | 5.7mm | 5.9mm | 3.2mm | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| C7 | 6.2mm | 6.4mm | 2.8mm | 1000,000 | 600 | Up＞210° Down＞210° | 130° | 4-80mm |
| C8 | 2.0mm | 2.0mm | / | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| Model | Insertion Tube | Channel Size | Resolution | Working Length | Bending | Field of View | Depth of Field |
| M3 | 3.1mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
| M5 | 2.5mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
| M7 | 2.8mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
M6 (Pressure Measurement) | 2.8mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
| Model | Insertion Tube | Channel Size | Resolution | Working Length | Bending | Field of View | Depth of Field |
| R1 | 5.5mm | 2.2mm | 1000,000 | 380mm | Up 210° Down 130° | 130° | 4-80mm |
R2 (Rigid Endoscope) | 4.5mm | 2.2mm | 160,000 | 230mm | / | 120° | 5-50mm |
| Model | Insertion Tube | Channel Size | Resolution | Working Length | Bending | Field of View | Depth of Field |
| R1 | 2.2mm | 1.2mm | 160,000 | 200±10mm | Left 90° Right 90° | 130° | 5-40mm |
