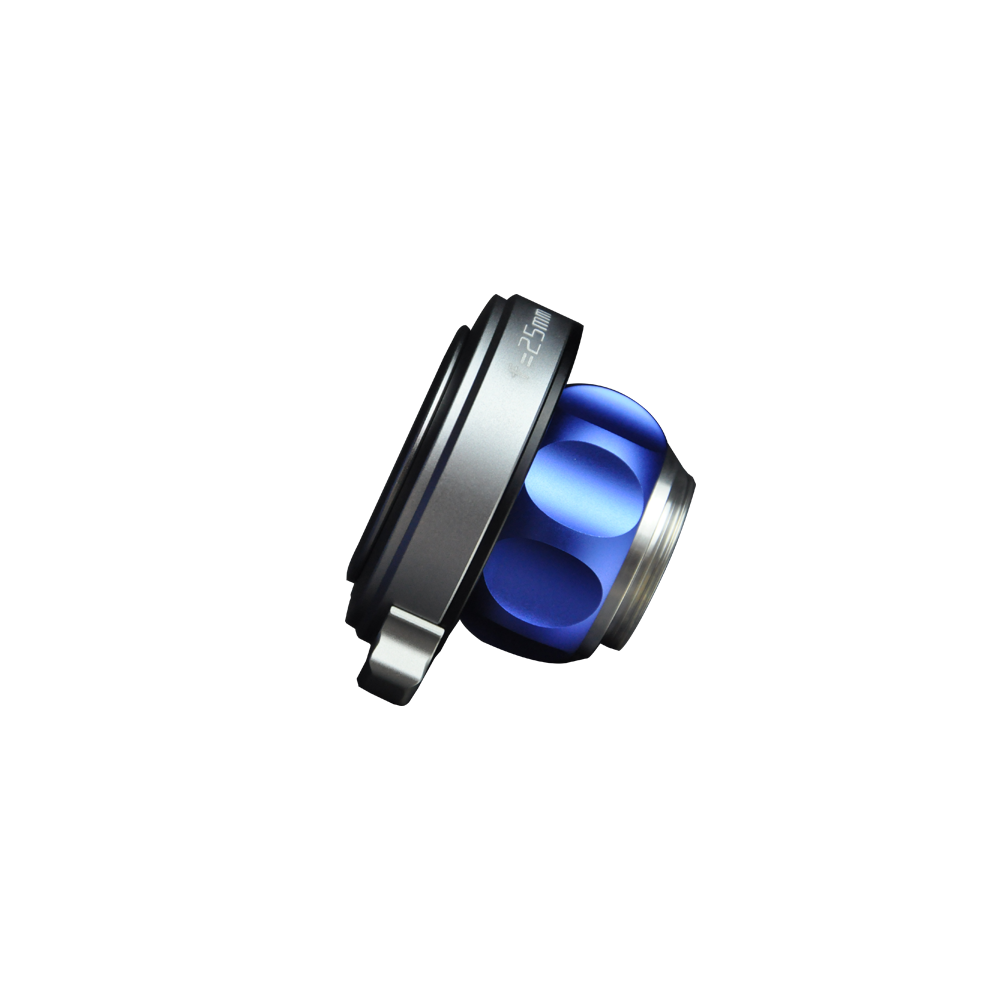

IKEDA Fixed Focal Endoscope Couplers offer a budget-friendly solution for connecting any C-mount to an endoscope, delivering high-quality imaging without compromise. These durable couplers come in various focal lengths (18mm, 22mm, 25mm, and 32mm) to ensure optimal magnification for any camera. Features include precise focus-control for enhanced image clarity, validated sterilization, insulation for added protection, and leak-tested reliability, making them ideal for medical environments requiring rigorous hygiene and performance standards.
Technical Parameters
| Focal Length | 16mm | 18mm | 20mm | 22mm | 25mm |
| Mount | CS/C | ||||
| F No. | F/3.2 | F/3.6 | F/4 | F/4.4 | F/5 |
| Pixel | 4K (3840x2160) | ||||
| Focusing range | 0.1m~∞ | ||||
| TTL | 37.2mm | 37.18mm | 37.4mm | 28.4mm | 37.16mm |
