YKD-9132 4K All in One Endoscope Camera System combines the LED light source, camera, monitor and the 4K processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.

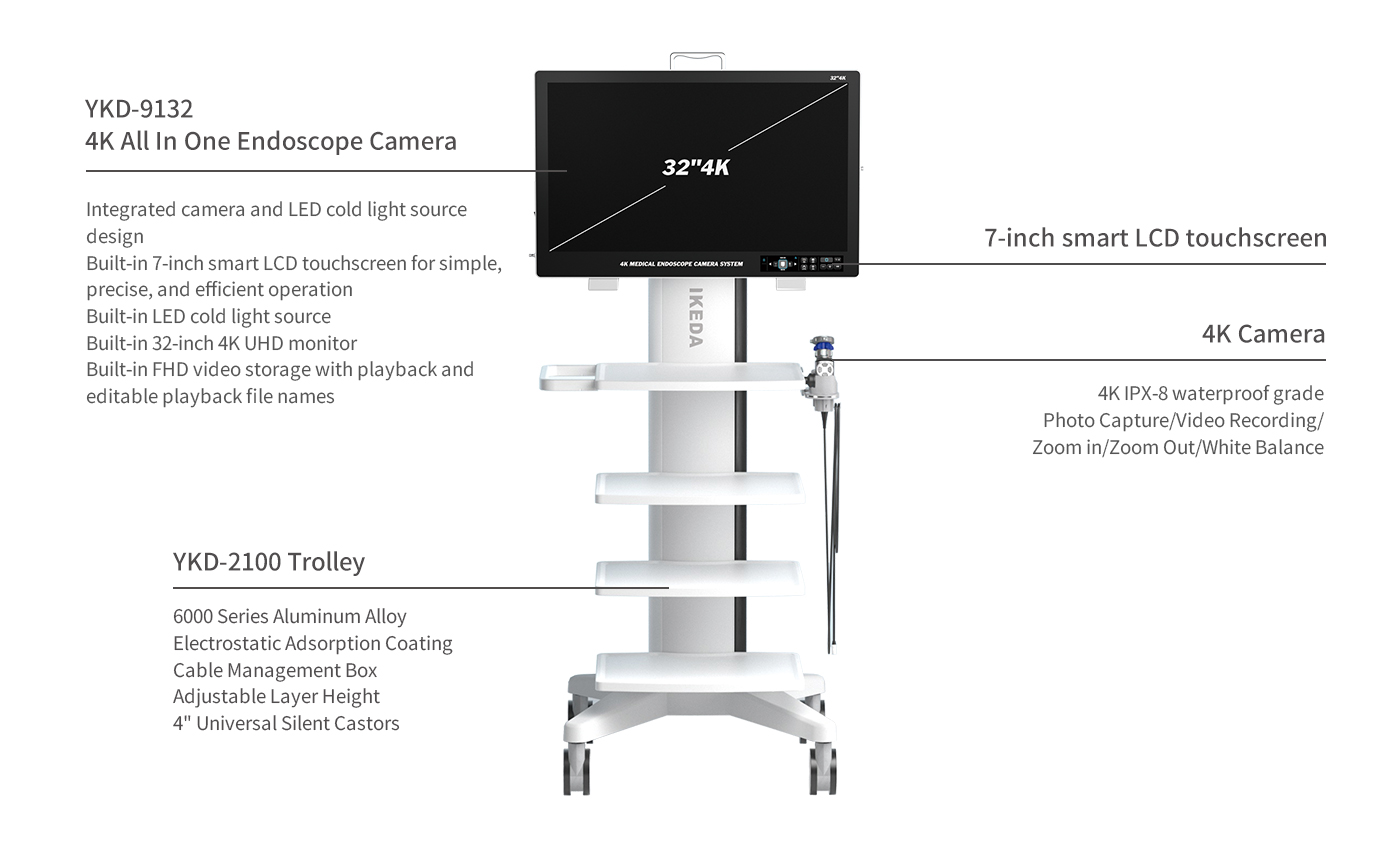

YKD-9132 4K All in One Endoscope Camera System
4K Resolution
Deliver ultra-high-definition image with 3840×2160 resolution.
32" Medical HD monitor
Extra anti-glare monitor Screen protector glass,98% light transmittance
LED medical light source
80W, support full range dimming, lift time≥50000 Hours
Camera head
Ultra HD imaging (3840x2160),1/2.5 inch SONY CMOS,IPX8 waterproof
5 USER Presets for surgical application
Technical Parameters
Image resolution: UHD 3840 x 2160
Horizontal resolution: 1800 TVL
Screen size: 32"
Light source: 80W LED cold light source
Video out terminal: 1x HDMI 2.0 (3840 x 2160)、1x DVI、1x 3G-SDI
Product size:759(L)x487(W)x103(H)
Weight: 16KG
