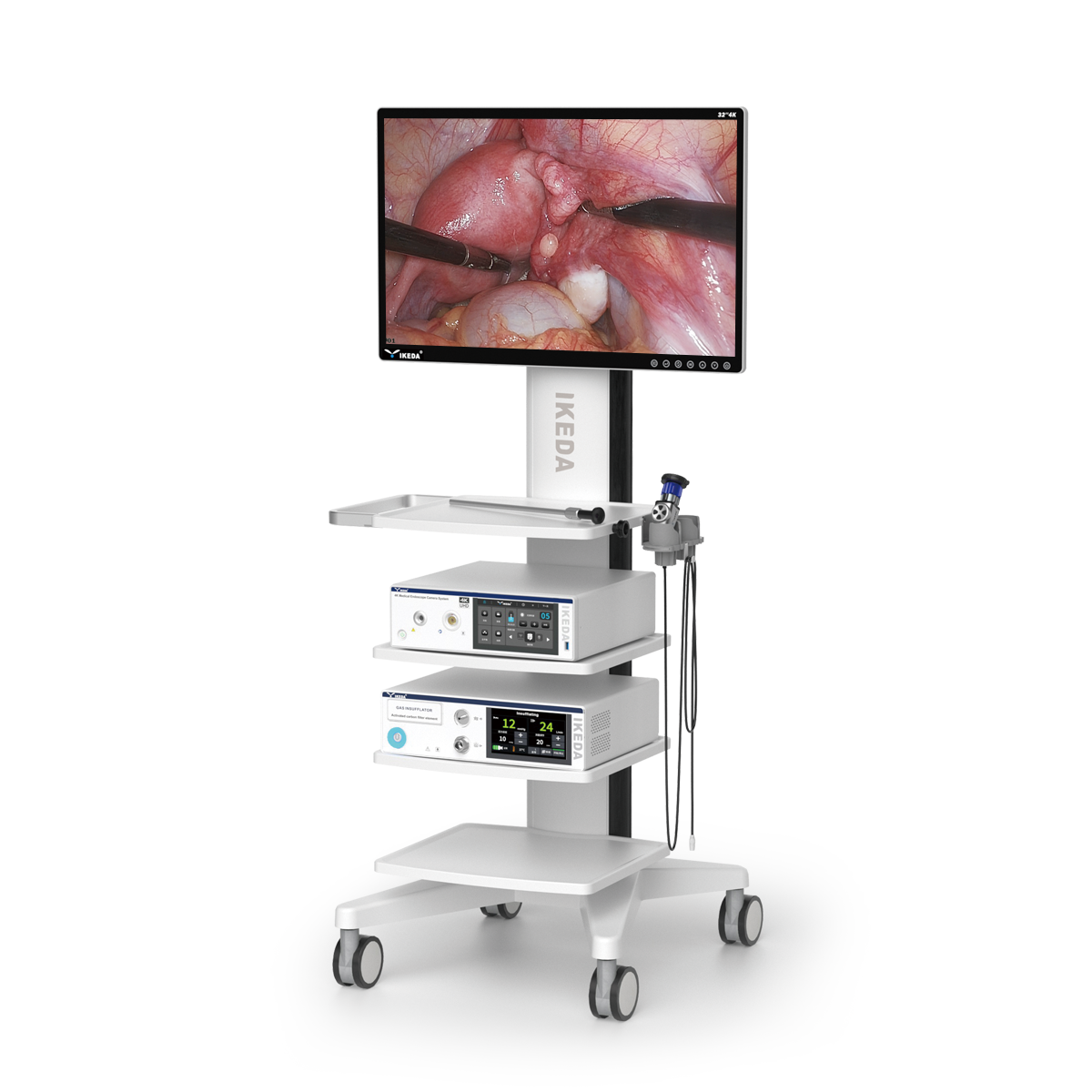

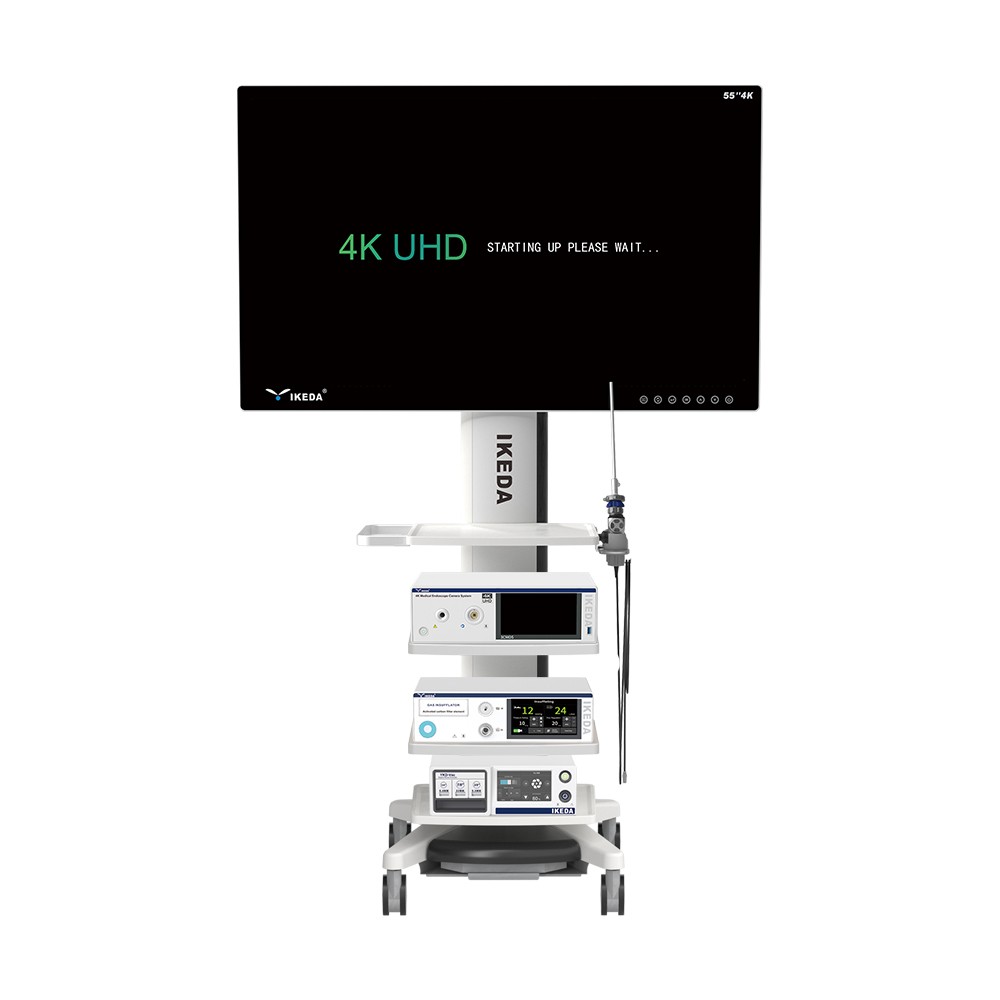

The IKEDA 3CMOS 4K Endoscope Camera System sets a new standard in surgical imaging with ultra-high-definition resolution and triple CMOS sensor technology. Designed to provide enhanced depth, sharpness, and color fidelity, it supports accurate diagnosis and treatment in laparoscopic, ENT, urological, and arthroscopic procedures. With seamless integration into operating rooms, intuitive controls, and support for real-time video recording and playback, IKEDA 3CMOS 4K ensures clinical efficiency and visual precision—making it the ideal choice for hospitals and surgical centers worldwide.

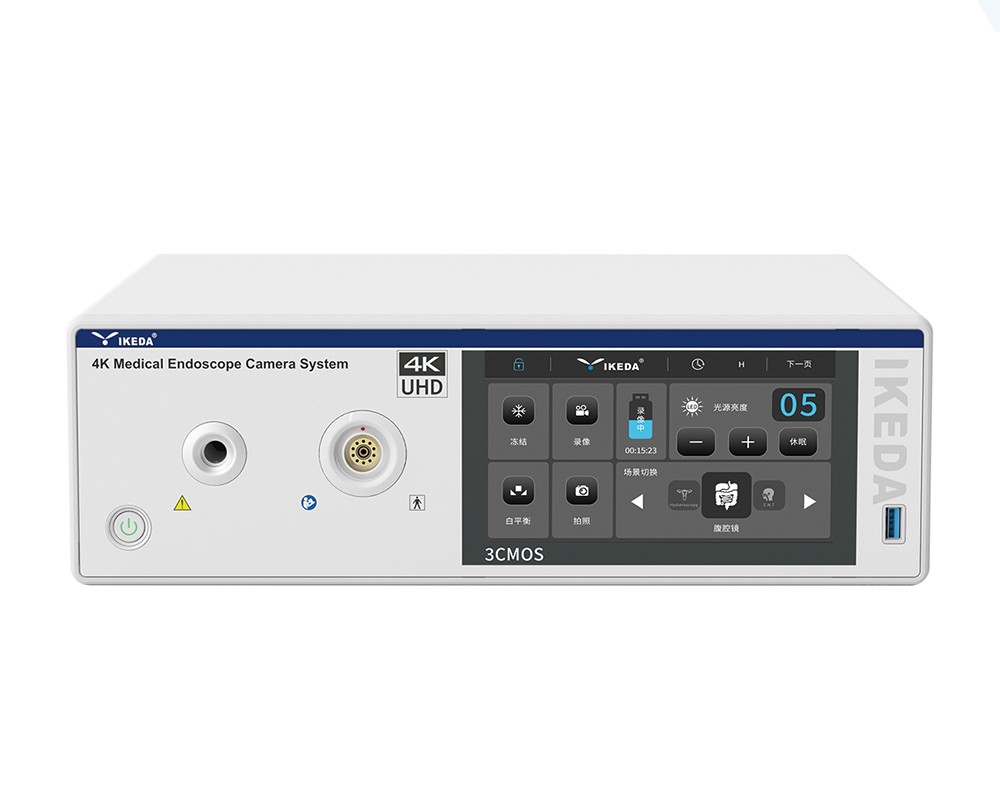

YKD-9230 3CMOS Endoscope Camera
Triple CMOS Sensor Technology
4K Ultra-HD Resolution (3840×2160)
7" Smart Touchscreen Control Hub
Medical-Grade LED Cold Illumination
One-Click Multi-Surgical Mode Switching
High-Frame-Rate Imaging (50/60fps)
Integrated USB 4K Video Recording
IPX8 Submersible & Autoclavable Camera Head
Technical Parameters
| Item ID | YKD-9230 |
| lmage Transfer Pixels | 3840x2160(4K UHD) |
| System Noise (Total) | ≤55 dB (A-weighted) |
| System Output (Composite) | HDMI 2.0 x1/DVI x1/3G-SDI x1 |
| USB Interface | USB 3.0 x1 |
| Output Frame Rate | 60Hz/50Hz(auto-sensing) |
| Output Resolution | 3840x2160:1920x1080 |
| lmage Capture Storage | JPEG,BMP (lossless compression) |
| Video Recording Storage | MP4 (H.264/AVC) |
| Interaction Mode | 7-inch capacitive touchscreen 4 ergonomic handle-mounted control buttons |
