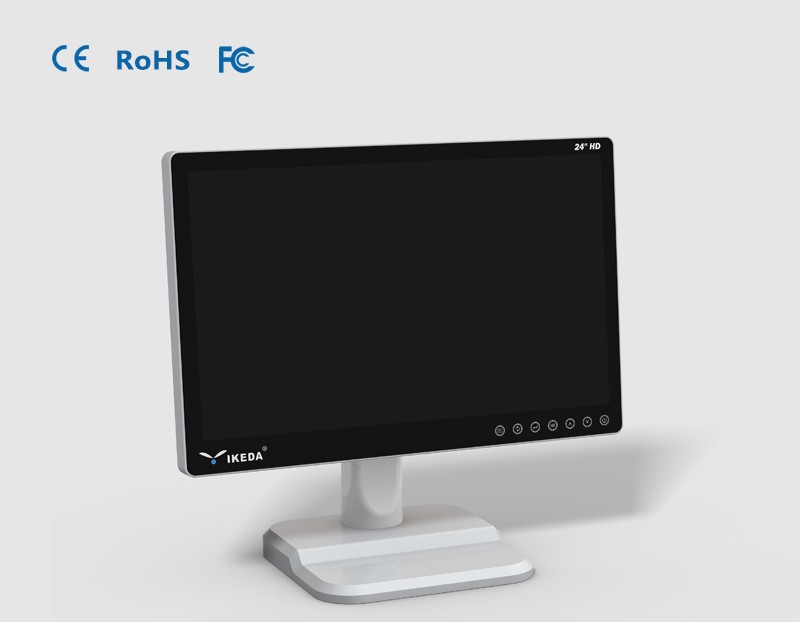

  • Medical Endoscope Monitor 24”
  • Medical Endoscope Monitor 24”
  • Medical Endoscope Monitor 24”
  • Medical Endoscope Monitor 24”

    1. High-performance I/P conversion

    2. Bright color separation deep compensation

    3. Environmentally friendly LED backlight

    4. Dynamic dark area color reconstruction technology

    5. Over Drive accelerates response and eliminates screen smear

    6. Digital image transient enhancement technology

    7. Unique white balance automatic adaptation technology

    8. Gamma value adjusted one by one before leaving the factory

    9. Personalized three primary color adjustment permissions

    10. Operate custom screen ratio adjustment between different modes



    Share:
    Product Details

    Product Parameters

    Monitor Size

    24"

    Model

    YKD-8024

    Colour&Material

    White & metal

    power supply

    12V/8.5A

    Image size

    (Horizontal*Vertical)

    1920x1080

    ratio

    16:9

    Default brightness

    500±20%

    Highest brightness

    600

    Contrast

    1000:1

    Display color

    16.7M 6bit

    Response time(/ms)

    14ms

    Perspective

    178/178

    Product Size

    570(W)x345(H)x65(D)mm   (Without base)

    MTBF

    ﹥50,000 hours

    Signal interface

    DVI/VGA/CVBS/S-VIDEO

    application

    Endoscope/electronic gastrointestinal endoscopy,   laparoscopy

    Default color temperature

    6500K

    Color gamut

    72% NTSC(sRGB)

    Brightness uniformity

    >75%

    scanning frequency

    50HZ-75HZ

    Accessories (wire)

    DVI

    Backlight module

    LED
