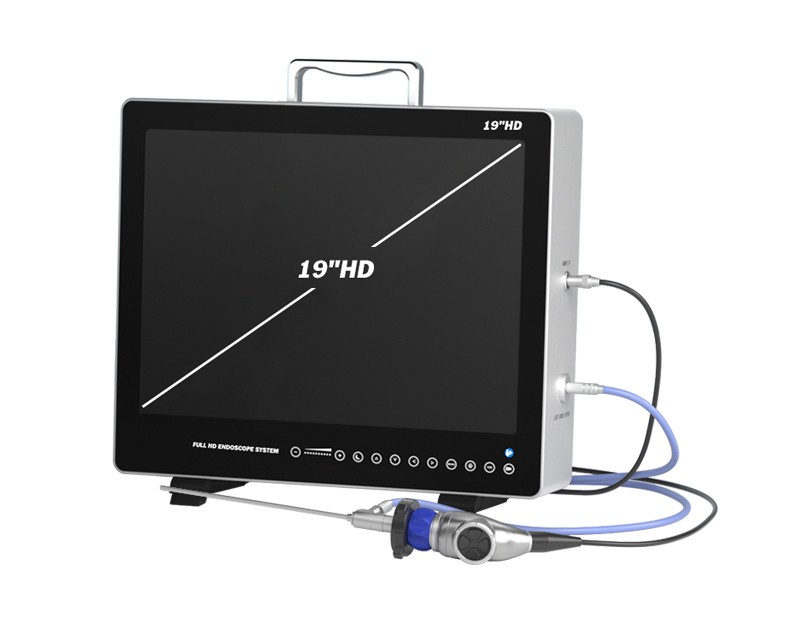

YKD-9119 All In One Endoscope Camera System
• FULL HD camera control unit
• All-in-one design integrates 19-inch FHD monitor, LED light source, and camera control unit.
• Built-in USB FULL HD image storage, Integrated photo/video recording system
FHD Camera
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Technical Parameters
Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen size | · 19 inch |
| Light source | · Built-in LED cold light source |
Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
Language | · Chinese/English/Japanese/Korean/Spanish/Russian |
