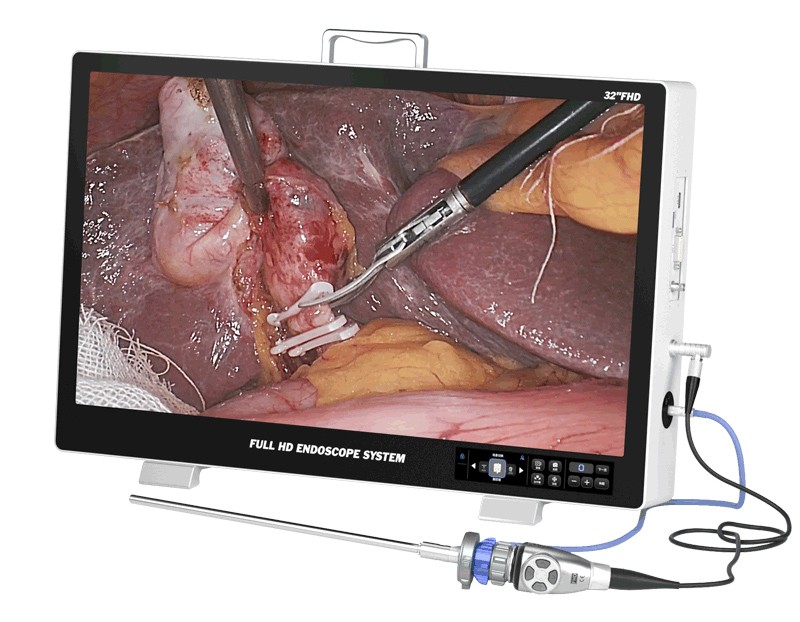

The IKEDA ALL-IN-ONE Endoscope Camera Systems integrate a medical-grade monitor (from 15″ to 32″ options), a powerful LED cold light source, and a high-definition video processor with recording capabilities. It’s all about streamlining your workflow without skimping on quality.
• FULL HD camera control unit
• All-in-one design integrates 32-inch FHD monitor, LED light source, and camera control unit.
• Built-in USB FULL HD image storage, Integrated photo/video recording system
FHD Camera
• IPX8 waterproof camera
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
• Universal C-mount threading
• Lightweight and ergonomic design
Technical Parameters
Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
Screen Size | · 32 inch |
Light Source | · Built-in 80W LED cold light source |
Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons/Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
Language | · Chinese/English/Japanese/Korean/Russian/Spanish |
