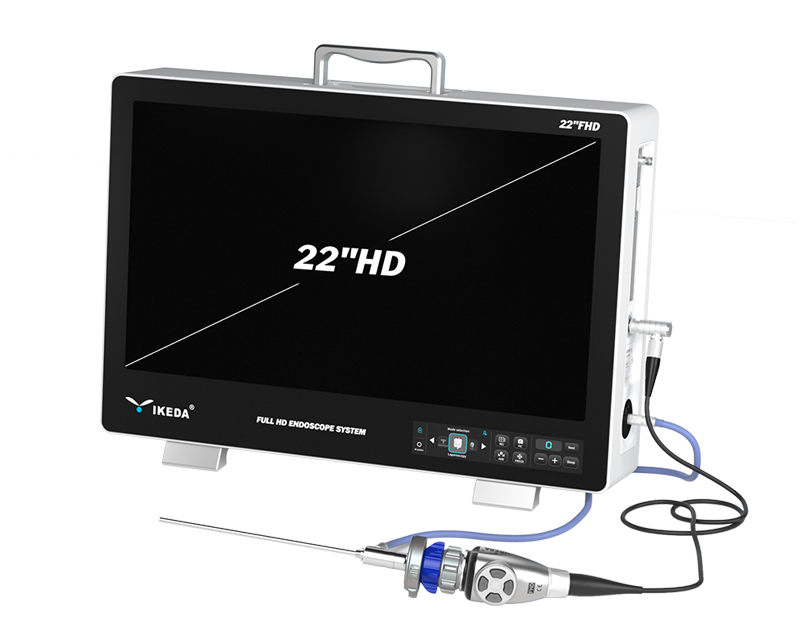

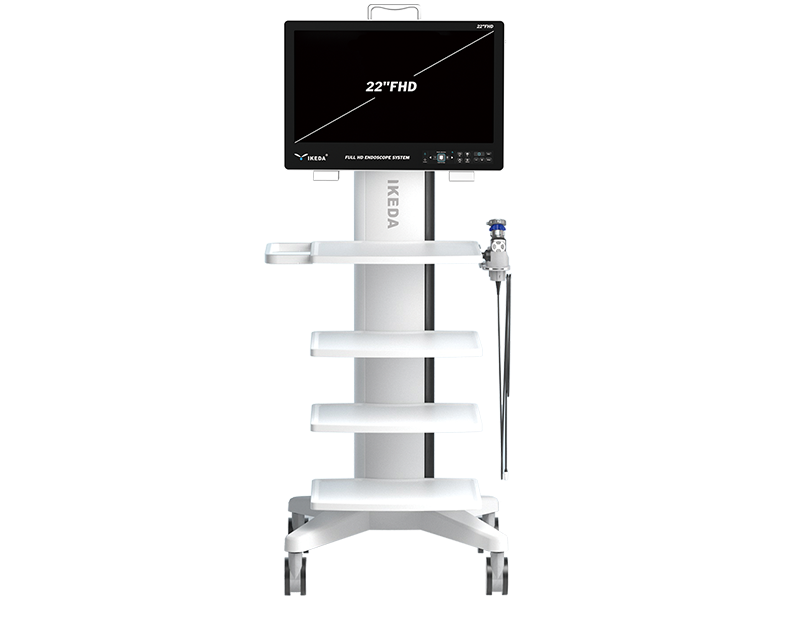

The IKEDA YKD-9122H All-in-One Endoscope Camera System integrates a camera, HD monitor, LED light source, and recording function into a compact, high-definition solution for diagnosis and treatment in outpatient and clinical settings. This multifunctional platform is compatible with all departments.
22" Medical HD monitor
Extra anti-glare monitor Screen protector glass,98% light transmittance
LED medical light source
80W, support full range dimming, lift time≥50000 Hours
Camera head
Full HD imaging (1920 x 1080),1/2.3" SONY CMOS,IPX8 waterproof,Full HD optical coupler C-mount standard
Technical Parameters
Resolution: 1920(H) x 1080 (V) 60 frames
Screen size: 22"
Image format: JPG 1920 x 1080
Video format: Full HD 1920 x 1080
Light source: 80W LED cold light source
Product size:528(L)x105(W)x370(H)
Weight: 9.85KG
